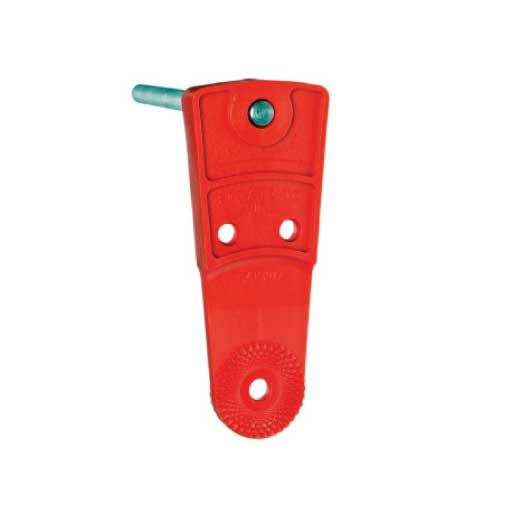

The Universal Valve Lockout device is a modular system which enables different types and sizes of valves to be locked out.
No other device offers such flexibility and security.
- Modular system makes your investment economical and flexible
- Can be used to lock out large levers, T-handles and other hard to secure mechanical devices
- New open-ended clamp fits over closed rings, wide handles
- Locks out valves in open and closed positions
- Made from industrial-grade steel and nylon for rugged durability, giving chemical and corrosion resistance
The Universal Lockout is a modular construction where the user can add various accessories to make the device suitable for a range of valves.
Simply disassemble the device (as shown in picture) and slot in the relevant accessory. Optional blocking arm(s) can be added to make the device suitable for locking ball valves in the open, closed or set positions.
A 2.44m cable attachment (3.25mm dia) can be added to make device suitable for locking off gate valves (BS15).
Model BS13 (small) will fit maximum handle / lever thickness of 13mm
 |  |  |  |
Use as a butterfly valve lockout Clamp attaches to butterfly valve lever, preventing trigger handle from being squeezed. Valve cannot be repositioned Note: Model BS13 requires 24mm clearence between lever and trigger. | Use as a gate valve lockout Add a cable attachment to lock gate valves in the ON; OFF; or SET positions. | Use as a control to set the flow on ball valves. Use two locking arms to lock 3, 4 or 5-way valves in the throttled position for operational control | Use as a ball valve lockout Add a blocking arm to lock quarter turn ball valves in the ON or OFF positions. |
