Badge

No.1 Lockout Tagout Specialist

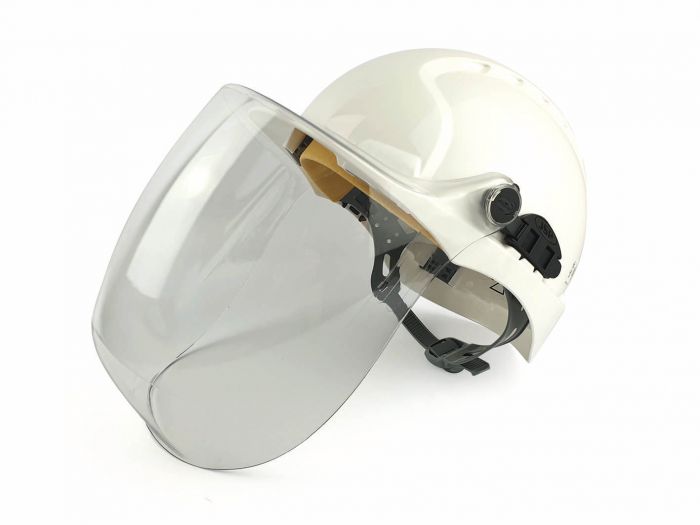

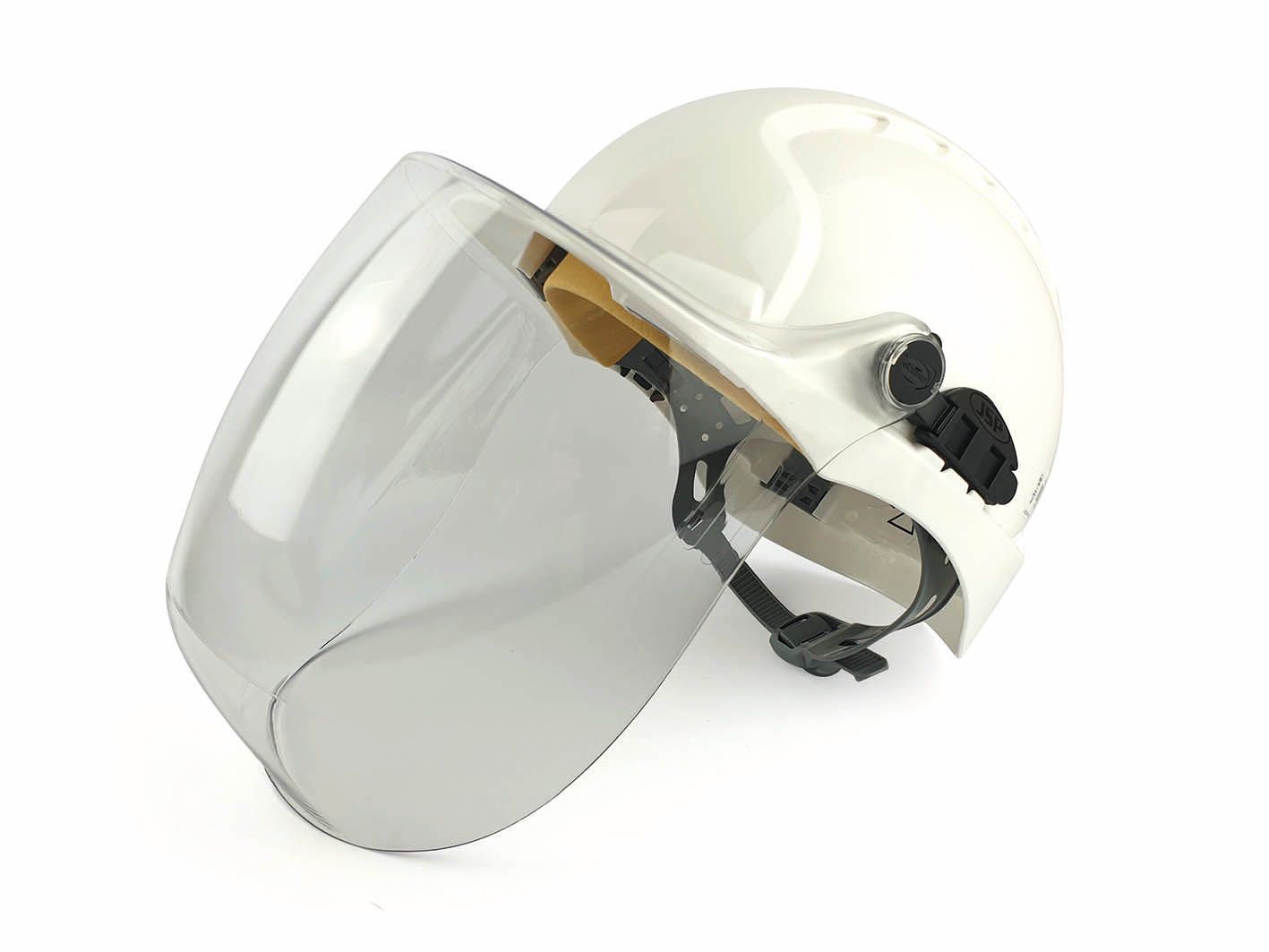

C5 EVOGuard MAX Industrial Visor & Evo2 Non-Vented Helmet

SKU
ELEC5EVO2COMBI
£64.13

C5 MAX Industrial Visor is compatable with the EN50365 standard EVO2 Safety Helmet (Non-Vented)

Class 1 Visor

Providing eye and face protection against a risk of a fault arc: GS-ET-29 Class 1, 4kA (155KJ/m² or 3.7 cal/cm²)

Short Circuit Electric Arc and Electric Arc Protection

Chin Guard with Anti-Scratch and Anti-Mist

EVO2 Safety Helmet (Non-Vented)

Meets the EN50365 Class 0 10KV standard

Electricians Non vented helmet

Dual set of clips for compatability with ear defenders and brow guard

Visor and helmet can be sold separately - please request a quote online or, contact the office direct.

EVOGuard™ C5 MAX Industrial Visor

  • Impact Rating - High Energy Impact (190m/s) *when fitted to a compatible JSP EVO® helmet
  • Impact Rating - Medium Energy Impact (120m/s) *when fitted to a compatible JSP EVOGuard™ Browguard
  • High Speed Particles at Extreme Temperatures
  • GS-ET-29 Class 1, 4kA (155KJ/m² or 3.7 cal/cm²)
  • Optical Class
  • Liquid droplets & splash
  • Molten Metals
  • Anti Scratch
  • Anti Mist
  • Short Circuit Electric Arc
  • Electric Arc
  • Visible Light Transmittance
  • 2C - 1. 2 - UV Filter with Enhance Colour Recognition
  • Polycarbonate Clear Visor
  • Weight (g) - 216g

VISION
The optical class 1 visor offers a panoramic view with minimal distortion, ideal for comfortable all day wear.

COMPATIBILITY
EVOGuard™ visors maximise compatibility with JSP half masks, disposable respirators, prescription glasses and the Sonis® helmet mounted ear defender range.

UV PROTECTION
Visor filters harmful UV radiation to protect the eyes whilst also offering high light transmission and enhanced colour recognition.

IMPACT
Five high performance visors offering up to A rated impact resistance when fitted to a safety helmet and fully compatible with EVOGuard™ browguard for medium energy impact protection.

COVERAGE
EVOGuard™ visors provide comprehensive facial coverage without limiting movement. EVOGuard™ MAX visors offer enhanced coverage with an integral chinguard.

ELECTRIC ARC PROTECTION
EVOGuard™ C5 MAX meets the requirements of GSET- 29, providing eye and face protection against a risk of a fault arc: GS-ET-29 Class 1, 4kA (155KJ/m² or 3.7 cal/cm²).

*Only applicable when combined with EVO safety helmet, arc flash protection not available with browguard system.

EVO2®Industrial Safety Helmet (Non-Vented)

Tough HDPE shell
In tests the EVO2® proved far tougher than the EN397 standard required and far tougher than any of it’s competitors.

Supreme Comfort
A 6-point polyethylene cradle harness system offers unrivalled comfort without compromising performance.

Chamlon™ Sweatband
Egyptian cotton core with porous PU coating for maximum sweat absorption. PH neutral, dermatologically tested.

3D Precision Fitting
Never before has such a precise fit been attainable on an industrial safety helmet, using the unique 1-2-3 point harness depth settings.

Adjustment
OneTouch™ Slip Ratchet.

Electrical Insulation
Meets the EN 50365 Class 0 10KV standard. This standard is applicable to electrically insulated helmets used for working live or close to live parts on installations not exceeding 1000Vac or 1500Vdc.

Universal Slots
Enables firm fitting of a range of Surefit™ safety visors and ear defenders.

Branding
Extra large area for logos on the front, sides, and rear.

Electrical Insulation (Non-vented only)
The un-vented version meets EN50365 Class 0 10KV standard. This standard is applicable to electrically insulated helmets used for working live or close to live parts on installations not exceeding 1000Vac or 1500Vdc.

More Information
BrandingReece
Product TypeHelmet with Visor
