Box Mount Voltage Isolation Indicator

SKU
RSR-3D2
£168.76

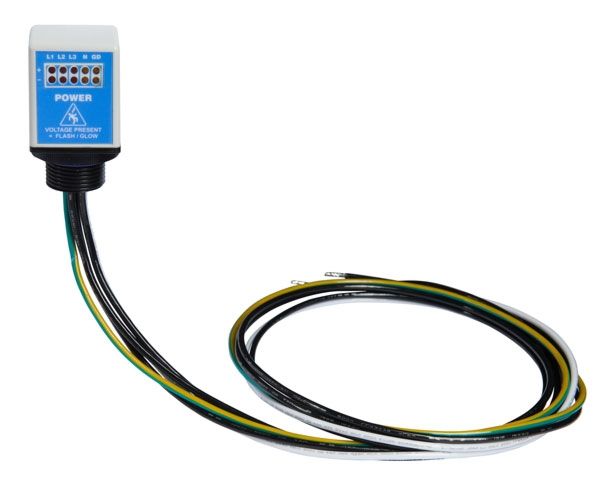

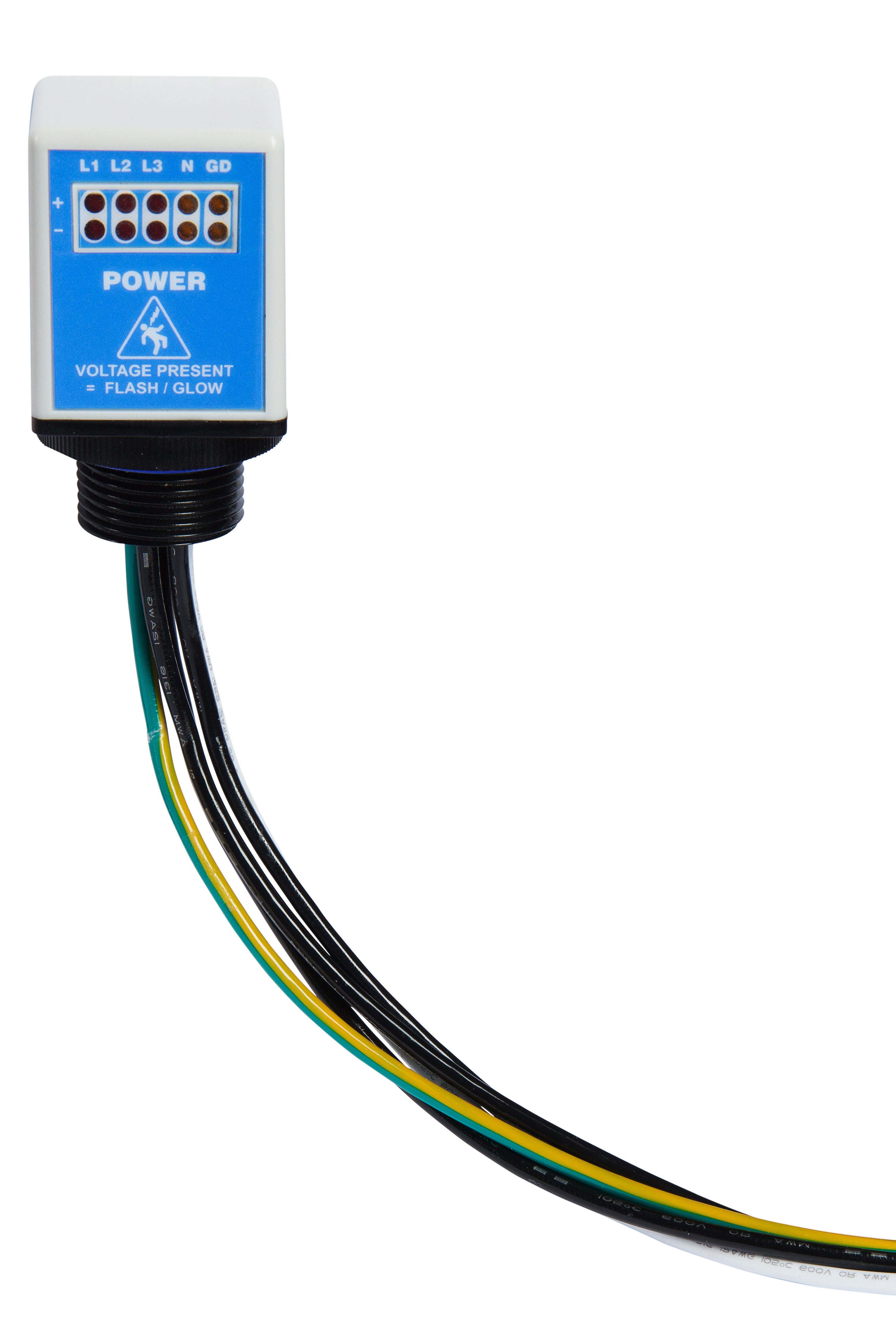

The Flex-Mount voltage indicator is a Permanent Electrical Safety Device (PESD) that conveniently mounts onto any electrical equipment by mounting through a ¾” (20mm) conduit knockout.

This 3-phase voltage indicator uses redundant, long-life LEDs (flashing or non-flashing options available) to provide a visual representation of energy presence with the flexibility of being mounted virtually anywhere (alternate mounting position labels provided).

The Flex-Mount comes with CAT III & CAT IV ratings that can be hardwired directly to the voltage source and is ideal for use in both AC (20-600V) & DC (20-1000V) applications.

This simple device can be easily retrofitted onto an electrical switch box and it will protect maintenance and operations teams from the dangers of the common failures of the rotary isolators.

  • Grace Voltage Indicators are Permanent Electrical Safety Devices (PESDs) that visually
    represent presence of voltage with flashing or non-flashing redundant LED lights.

  • Typically hardwired to the load side of disconnect, Voltage Indicators illuminate whenever
    hazardous voltage is present in any individual phase.

  • R-3W Series Voltage Indicators are suitable for both AC and DC applications from
    40-600VAC and 30-1000VDC is a one-size fits-all solution that detects
    3-phase AC/DC voltage from 40-600VAC or 30-1000VDC

  • Safely and productively validates zero energy presence and enhances compliance to OSHA & NFPA 70E/CSAZ462, when installed and verified by a qualified electrician and incorporated into the facility’s electrical safety procedure.
