Badge

No.1 Lockout Tagout Specialist

Ball Valve Lockout fits valve size 50mm to 200mm RED

SKU
BS17R
£51.72 (exc. VAT)

Manufactured from tough, durable polypropylene, the BS17R Ball Valve Lockout features a two-part design that encloses the valve lever to prevent accidental or unauthorised operation. Suitable for larger ball valves measuring 50mm to 200mm, it secures valves in the closed position. A removable insert accommodates different valve handle sizes, providing a secure fit for effective Lockout Tagout (LOTO) procedures.

Ball Valve Lockout – 50mm to 200mm (Red)

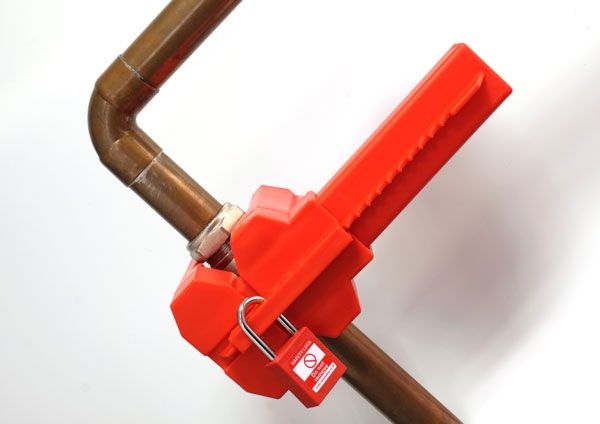

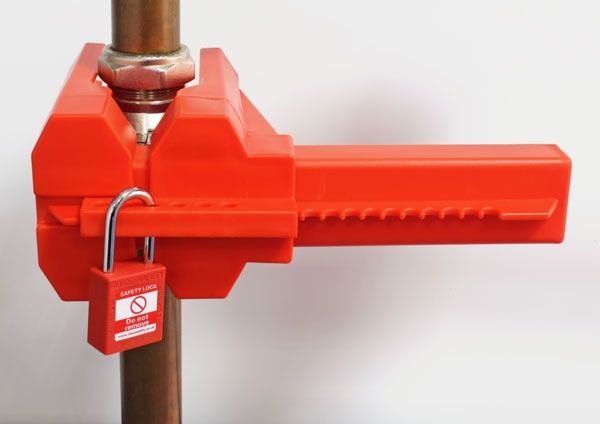

The BS17R Ball Valve Lockout is a robust, easy-to-use safety device designed to prevent accidental or unauthorised operation of larger ball valves during maintenance, servicing and repair work. Suitable for ball valves measuring 50mm to 200mm, it provides a secure method of locking valves in the closed position as part of an effective Lockout Tagout (LOTO) procedure.

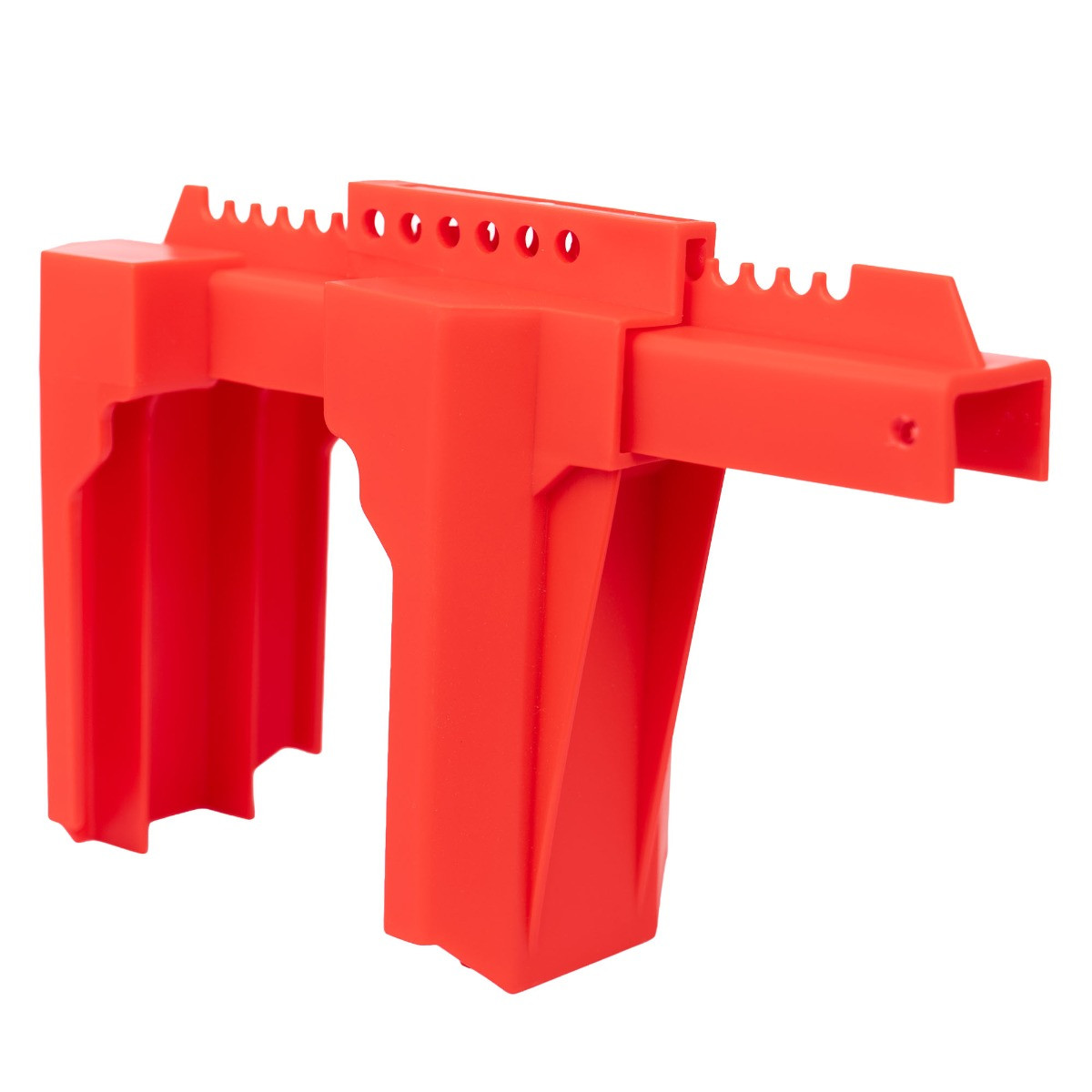

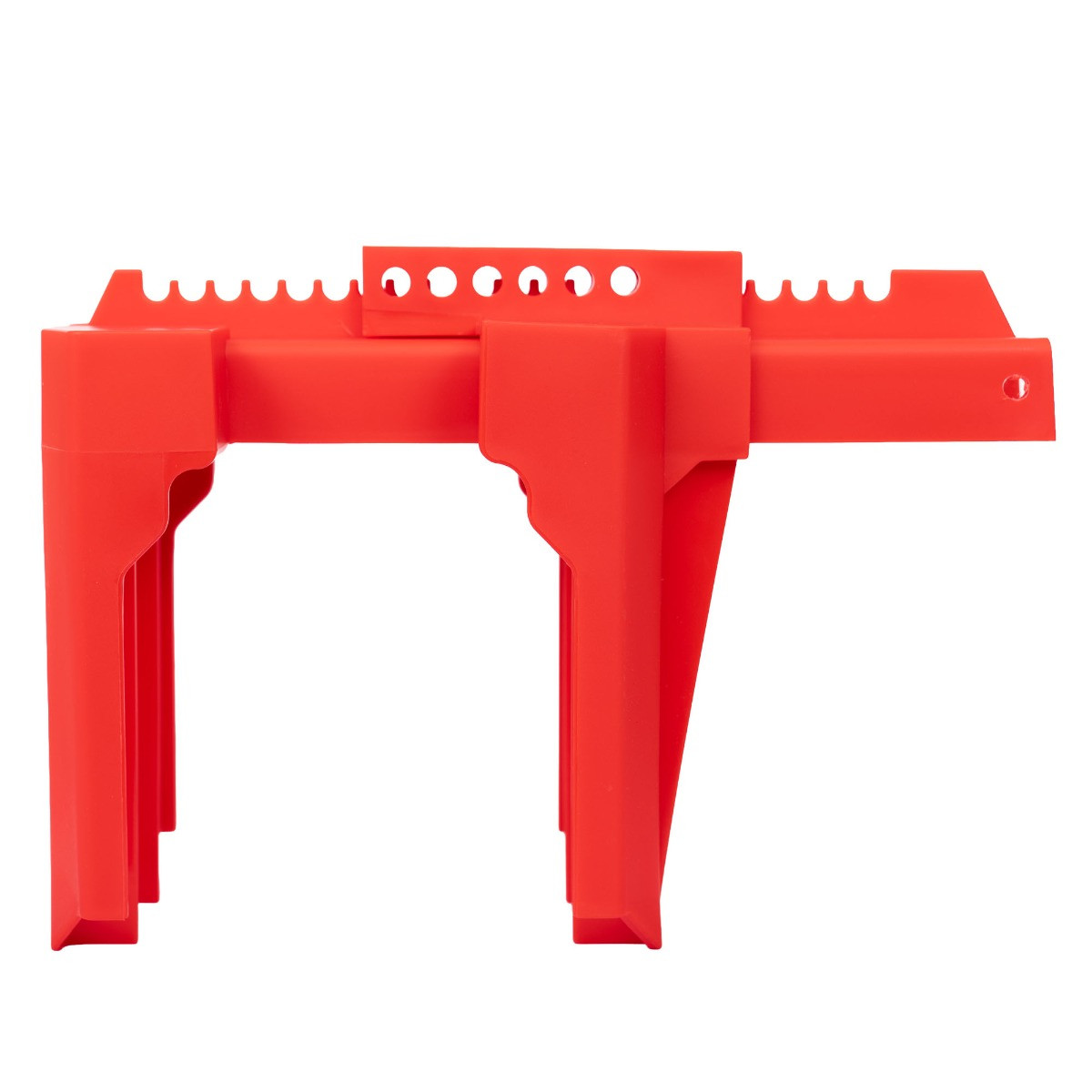

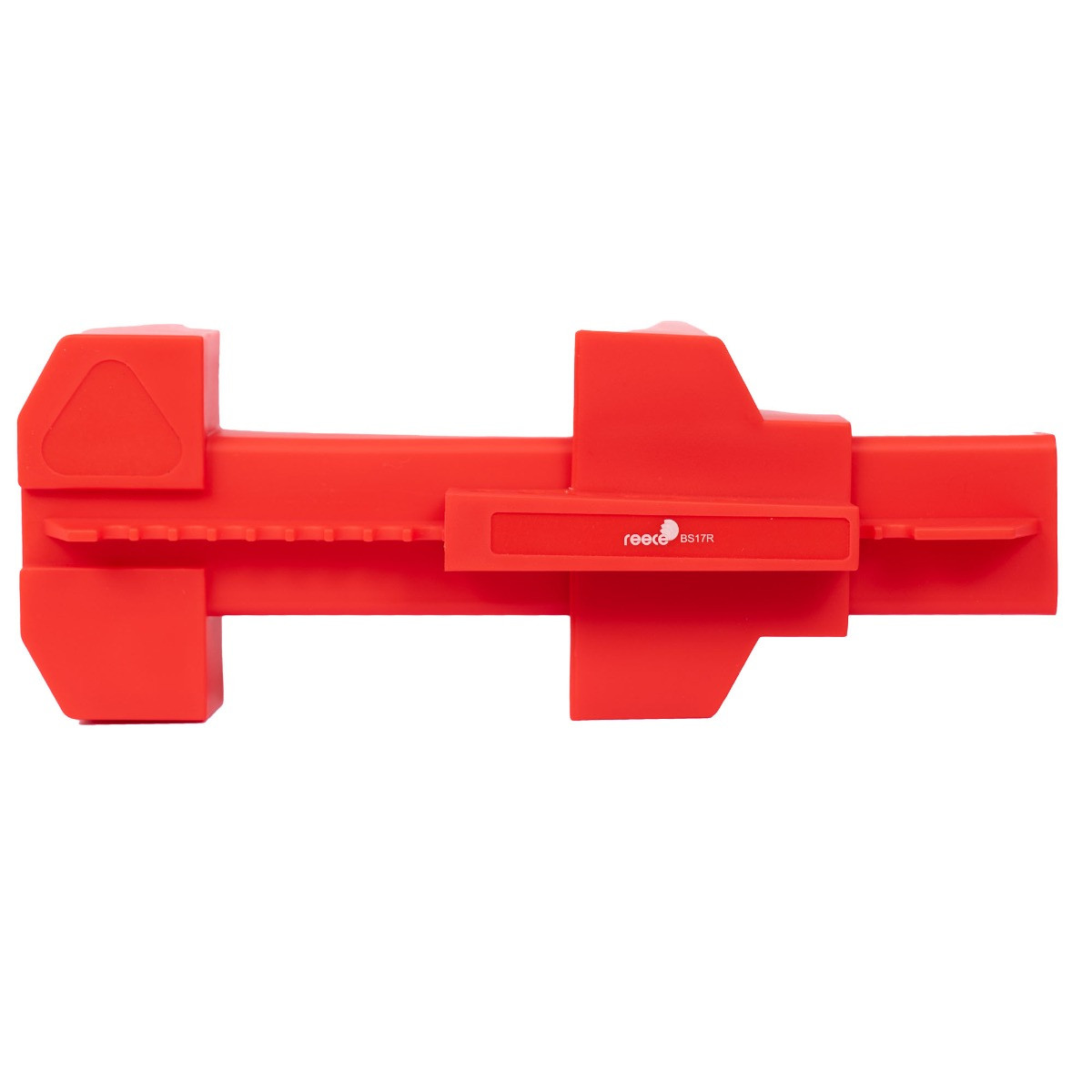

Manufactured from tough, durable polypropylene, the device features a two-part design that encloses the ball valve lever, preventing it from being operated while locked out. Its robust construction offers excellent resistance to cracking and abrasion, making it suitable for demanding industrial environments.

The adjustable design incorporates a removable insert channel to accommodate different valve handle dimensions, helping to provide a secure fit across a range of applications. Once correctly positioned, the two halves are secured together using a suitable safety padlock.

Key Features & Benefits

  • Valve compatibility: Designed for ball valves measuring 50mm to 200mm.
  • Secure valve isolation: Helps prevent inadvertent or unauthorised operation during maintenance and servicing.
  • Closed-position lockout: Designed to secure ball valves in the closed position.
  • Durable construction: Manufactured from tough polypropylene with excellent resistance to cracking and abrasion.
  • Operating temperature: -40°C to +90°C.

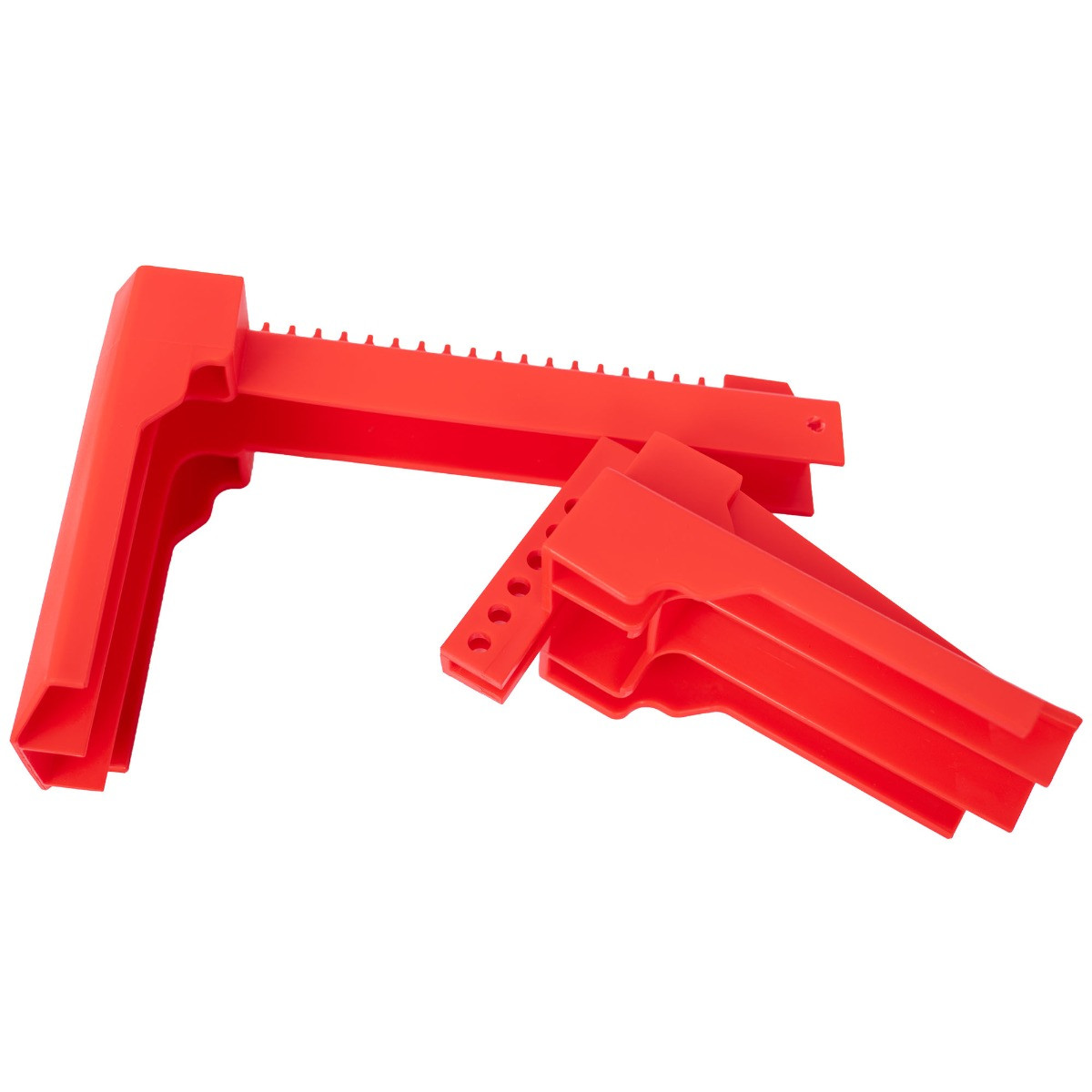

  • Two-part design: Encloses the valve handle to prevent operation when securely locked.
  • Removable insert: Accommodates a variety of valve handle dimensions to help achieve a secure fit.

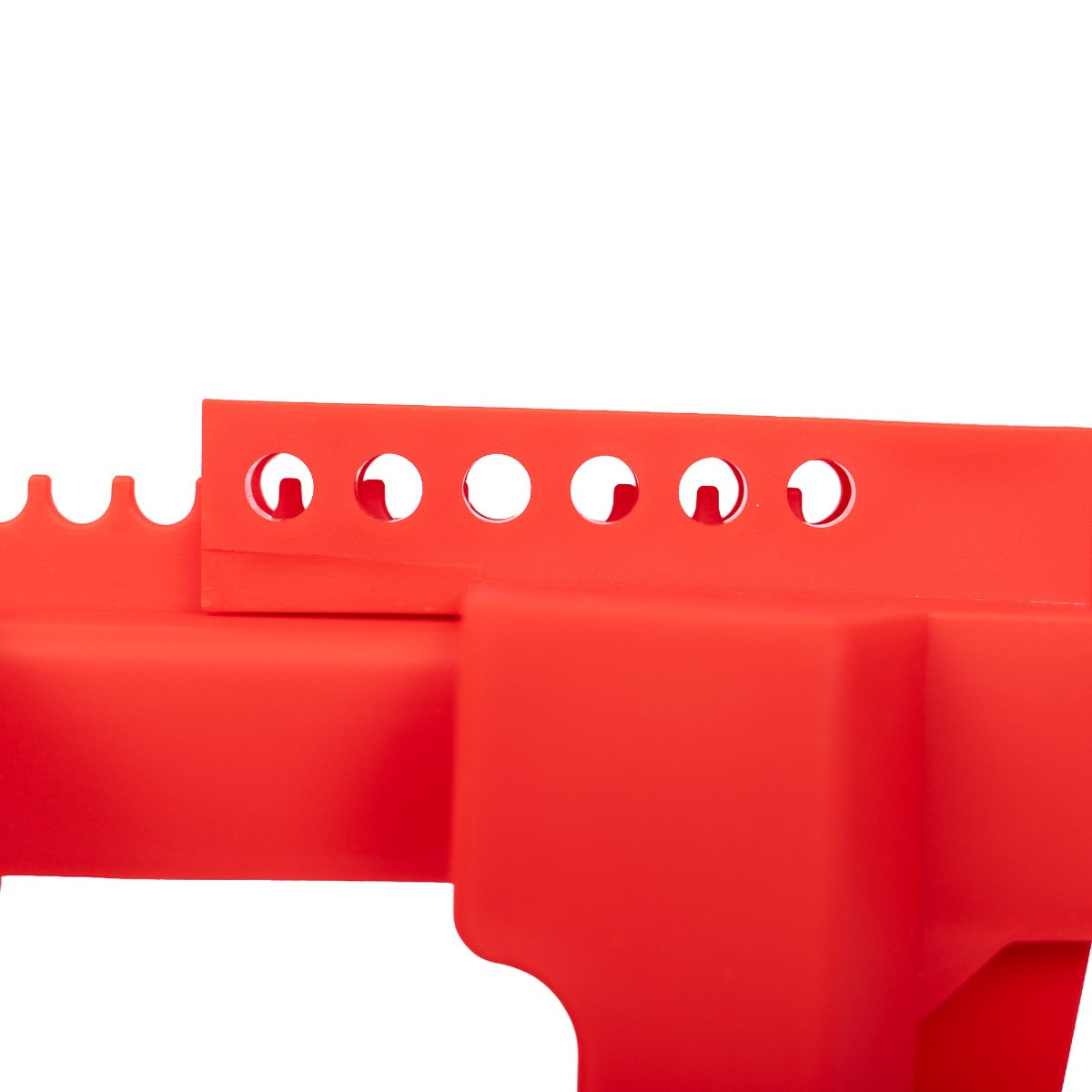

  • Padlock compatible: Multiple locking holes allow the device to be secured with a suitable safety padlock.
  • High-visibility red: Makes locked-out valves readily identifiable.

Applications

Ideal for industrial facilities, manufacturing plants, processing environments and maintenance operations where larger ball valves must be securely isolated. The BS17R can be incorporated into established Lockout Tagout (LOTO) procedures to help protect personnel from unexpected valve operation and the uncontrolled release of hazardous energy.

Product Specifications

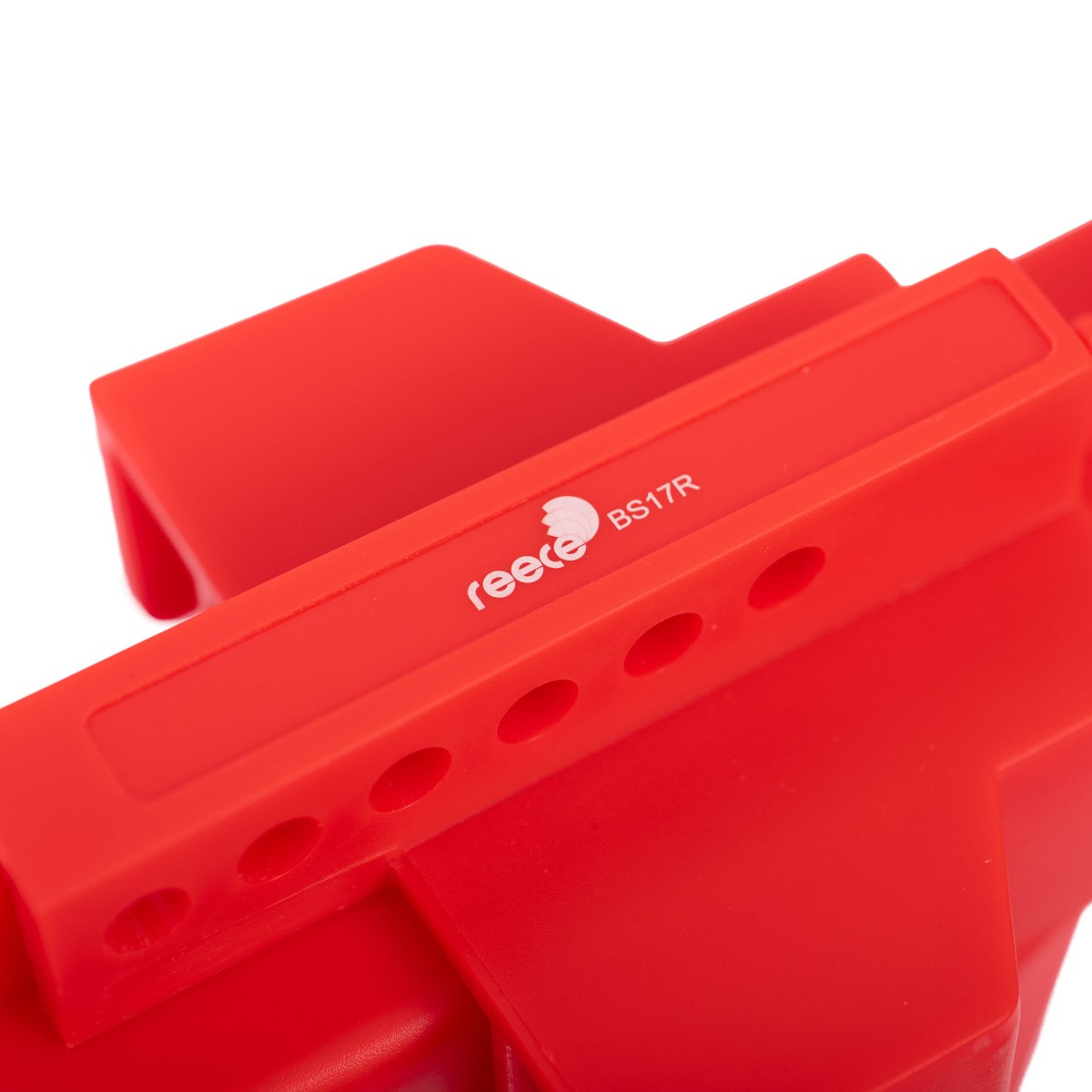

  • Product code: BS17R
  • Product type: Ball Valve Lockout
  • Valve size: 50mm to 200mm
  • Material: Polypropylene
  • Colour: Red
  • Operating temperature range: -40°C to +90°C
  • Lockout position: Closed
  • Design: Two-part construction with removable insert

Installation & Use

  1. Ensure the ball valve is in the closed position before fitting the lockout device.
  2. Position the two halves of the lockout device around the ball valve, ensuring the valve handle is captured within the cavity of the device.
  3. Bring the two halves together, adjusting the removable insert if necessary to accommodate the valve handle.
  4. Push the two halves firmly together and align the appropriate locking holes.
  5. Insert a suitable safety padlock through the aligned holes and secure.
  6. Verify that the lockout device cannot be removed and that the valve handle cannot be operated.

Important: Always verify that the device is correctly fitted and prevents valve operation before commencing work. If the lockout cannot securely retain the valve handle, it must not be used. Follow the appropriate site-specific isolation and Lockout Tagout procedures.

More Information
Type Ball Valve
