Martindale VI13800 Voltage Tester and PD440S Proving Unit

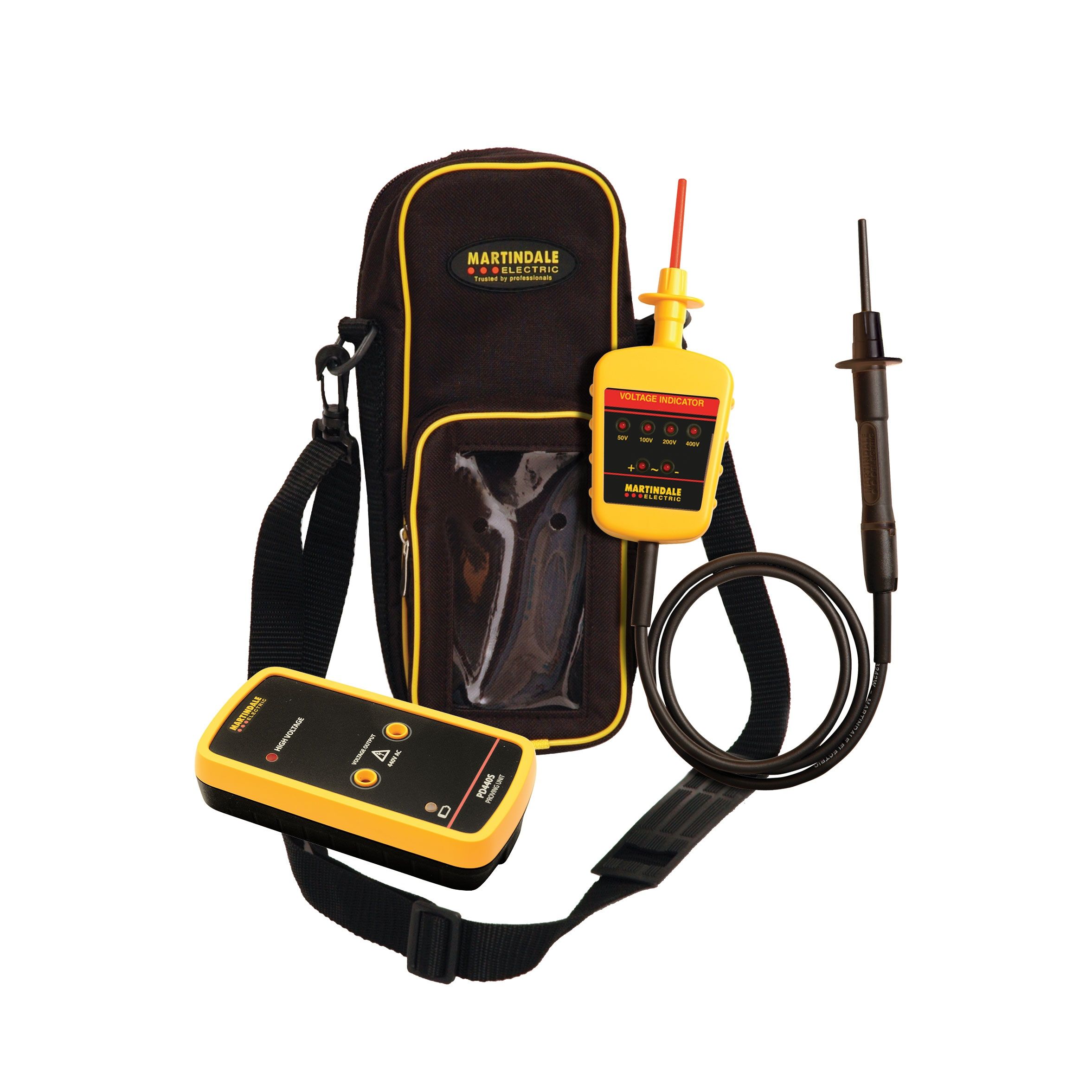

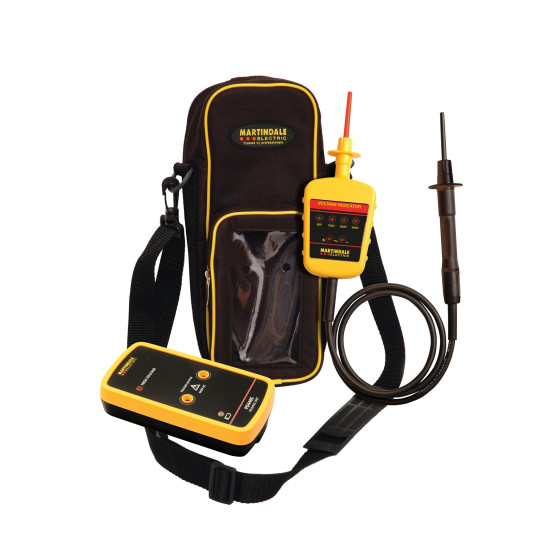

MARTINDALE VI13800 voltage tester and PD440S Proving unit in carry case.

Great solution to match with the best range of lockout kits and separate devices available in the Reece range. We commonly make up bespoke kits for people as often they dont want to have to buy the full pack if they already have some parts.

  • 50V – 600V AC/DC
  • Polarity & Voltage indication 50V
  • Heavy duty double insulated cable with contrasting inner core to reveal any damage
  • Bright LED AC/DC voltage and polarity indication
  • GS38 and BS EN61243-3 compliant

Martindale VI13800 Voltage Indicator Key Features

  • Nominal voltage range: 50 - 600V DC/AC rms
  • Nominal voltage threshold indications:
  • 50, 100, 200, 400 V DC/AC rms
  • Voltage threshold tolerance:
  • Conforms to BS EN 61243-3
  • Polarity & voltage indication: ≥ 12V DC/AC rms
  • AC/DC voltage detection: automatic
  • Range detection: automatic
  • Response time: <0.1s
  • Frequency range: DC, 1 - 400Hz
  • Test current: < 3.5mA at 600V DC/AC rms
  • Duty ratio: 30s ON (operated) / 240s OFF (recovery)


  • Temperature & Humidity (Operating & Storage): -10°C to 55°C ≤
  • 85% R.H.
  • Altitude: up to 2000m
  • General
  • Power: From circuit under test
  • Dimensions: 205(L) x 67(W) x 27(D) mm
  • Weight: 130g approx.


  • Conforms to BS EN 61243-3 CAT IV 600 V
  • Class II, Double Insulation
  • Pollution Degree 2
  • IP rating: IP54
  • EMC
  • Conforms to BS EN 61326-1

Martindale PD440S Proving Unit Key Features

  • Output voltage: 440V nominal
  • Output frequency: 50Hz nominal
  • Environmental
  • Operating temperature: -10°C to 40°C at max. 70% R.H.
  • Altitude: up to 2000m
  • Pollution degree: 2
  • General
  • Internal batteries: 6 x 1.5V, AA alkaline batteries (IEC LR6, NEDA 15A)
  • Dimensions: 150 x 80 x 35mm
  • Weight packed: 350g approx. with batteries
  • Includes: 6 x 1.5V AA alkaline batteries, instructions

What's Included In the Kit?

  • Martindale VI13800 Voltage Indicator
  • Martindale PD440S Proving Unit
  • Carrying Case
