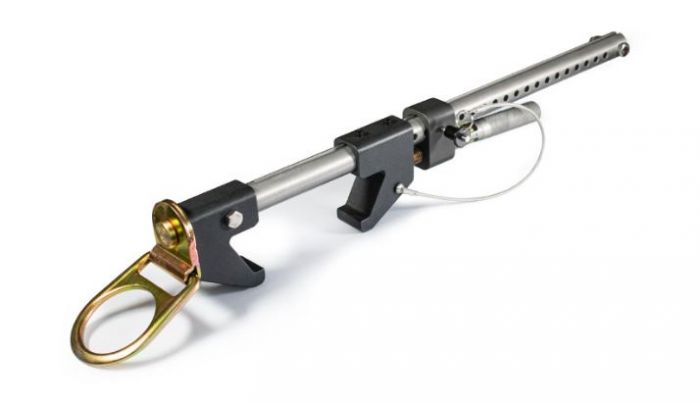

At Height Beam UK Vertical Beam Clamp - 80mm - 390mm
SKU
CT113.2
£318.51(exc. VAT)

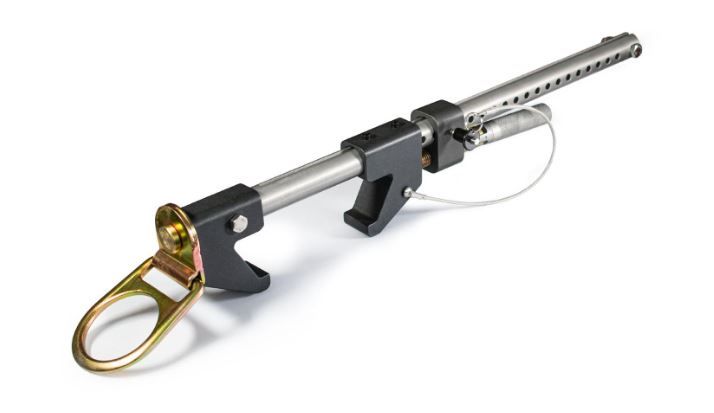

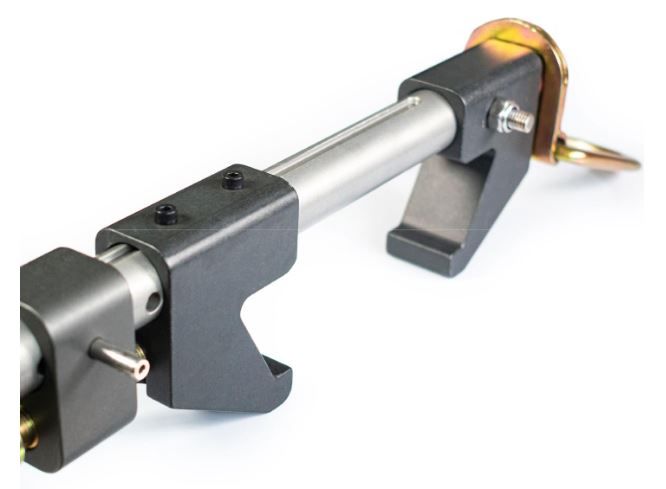

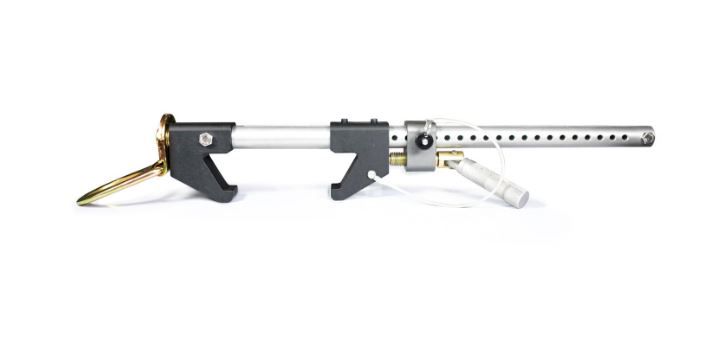

At Height UK Vertical Beam Clamp
Vertical Beam Clamp from At Height Ltd the CT113.3 is used as an anchor point for fall protection and for rope access. The device is for use by one person and two persons in the event of a rescue. Each device is individually labelled and serial numbered for easy traceability.
- Minimum Flange Width - 80mm
- Maximum Flange Range - 390mm
- Maximum Flange Depth - 40mm
Key Features
- Standards EN795: 2012/B
- Standards CEN/TS 16415:2013
- Working Load Limit 140kg
- I-Beam Dimensions Standard 80MM-390MM (CT113.2)
- Min. Beam Thickness 6mm
- Max. Beam Thickness 40mm
Specification
- Beam Anchor Use - Personal Fall Arrest or Restraint
- Minimum Flange Width - 80mm
- Maximum Flange Range - 390mm
- Maximum Flange Depth - 40mm
- Working Load Limit (KG) - 140kg
- Clamp Link Type - Fixed
- Size - 80mm - 390mm
- Max User Weight - 140KG
General
- Industrial or Sport Use - Industrial
- Conformity - CE EN795 2012
- Weight (kg) - 1.9kg
