No.1 Lockout Tagout Specialist

MCCB Lockout Permanently Mounted - Black

SKU
SPLDLCB
£17.38
Permanent installation so there is always a locking facility available
 MCCB Lockout Permanently Mounted - Black
 MCCB Lockout Permanently Mounted - Black
  • Ideal for permanent installation so there is always a locking facility available
  • For Single, 2, 3 or 4 pole Circuit Breakers
  • Mounts onto Circuit Breaker front cover
  • Designed to lock in the OFF position only
  • Installation instructions included

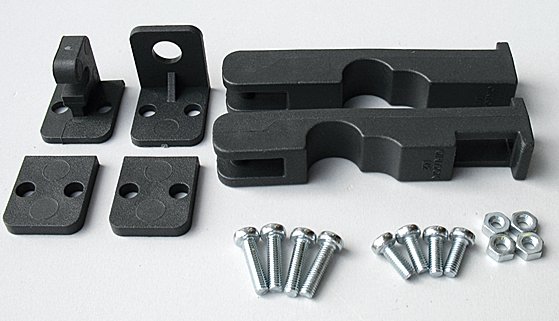

  • Fixing nuts & bolts included
  • Hinge system allows the locking bar to hang down when not in use

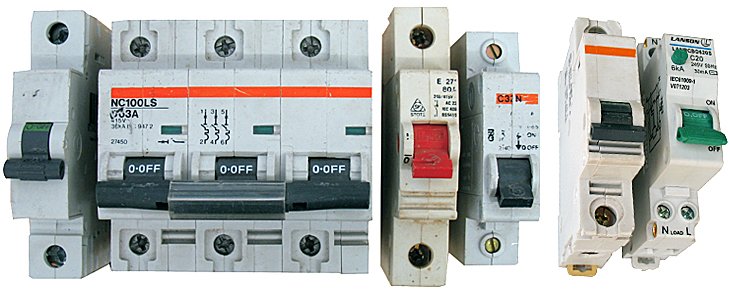

MInature MCBs For minature circuit breakers like these (MCBs) use model SPLDMCB Model SPLDMCB Model SPLDMCB photo

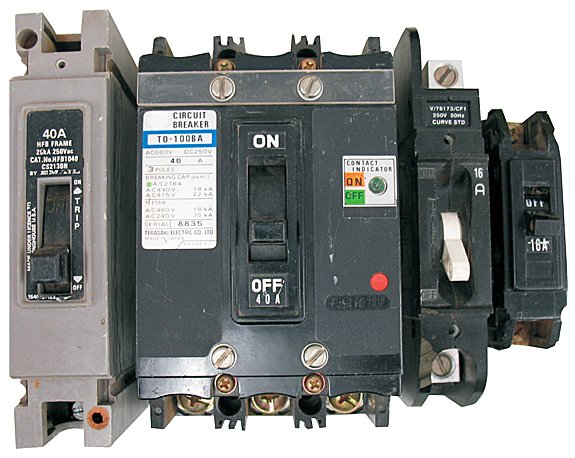

Moulded Case Circuit Breakers For moulded case circuit breakers like these (MCCBs) use model SPLDLCB

Model SPLDLCB

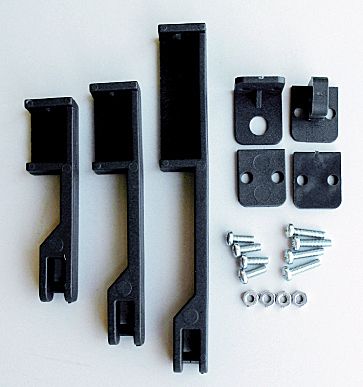

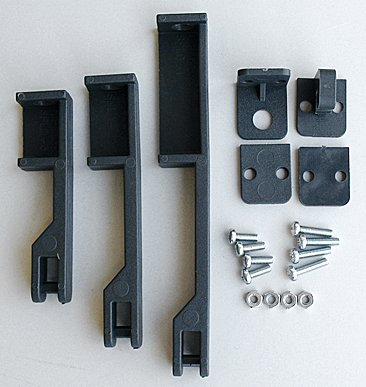

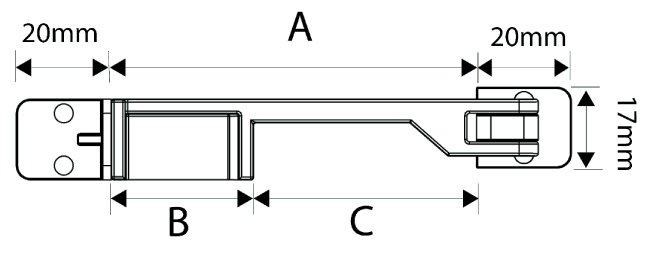

Contents include 3 different arm sizes

Arm1: A 108mm x B 50mm x C 58mm

Arm2: A 78mm x B 30mm x C 48mm

Arm3: A 58mm x B 26mm x C 32mm

Model SPLDLCB Photo





Write Your Own Review
You're reviewing: MCCB Lockout Permanently Mounted - Black
Your Rating

Datasheet on Permanently Mounted CB Lock Click here to download
