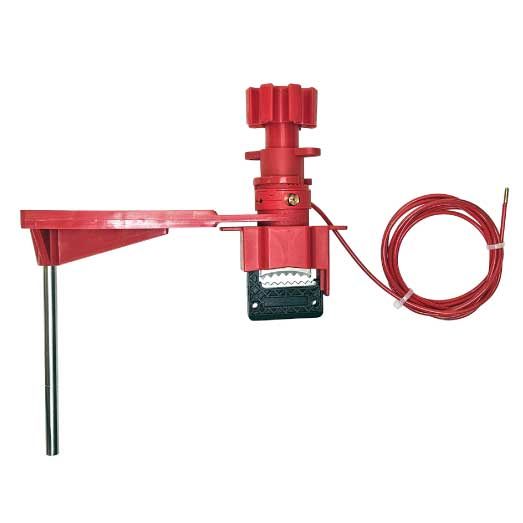

Large Universal base clamping unit fits 28mm Handlever
The Universal Valve Lockout device is a modular system which enables different types and sizes of valves to be locked out.
No other device offers such flexibility and security.
The Universal Valve Lockout device is a modular system which enables different types and sizes of valves to be locked out.
No other device offers such flexibility and security.
The Universal Lockout is a modular construction where the user can add various accessories to make the device suitable for a range of valves.

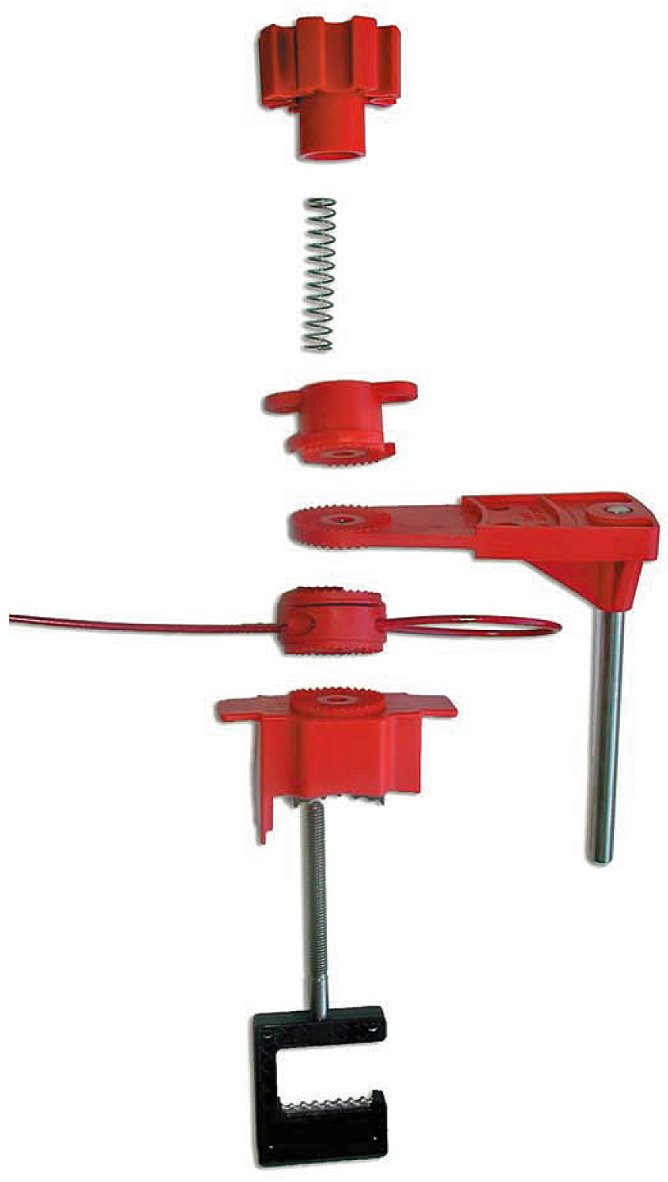

Simply disassemble the device (as shown in picture) and slot in the relevant accessory. Optional blocking arm(s) can be added to make the device suitable for locking ball valves in the open, closed or set positions.
A 2.44m cableattachment (3.25mm dia) can be added to make device suitable for locking off gate valves (BS15).

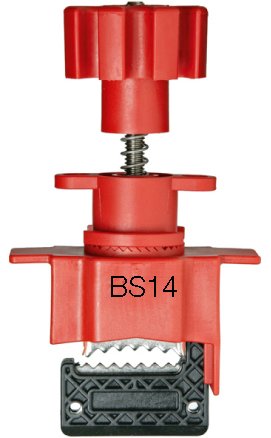

Model BS14 (large) will fit maximum handle / lever thickness of 28mm
![]() |
![]() |
![]() |
![]() |

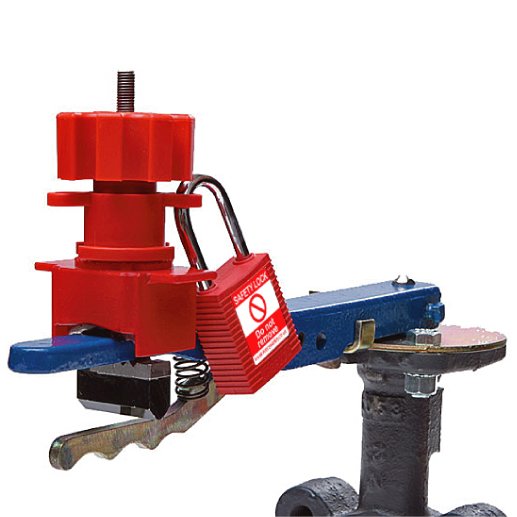

Use as a butterfly valve lockout Clamp attaches to butterfly valve lever, preventing trigger handle from being squeezed. Valve cannot be repositioned Note: Model BS14 requires 28mm clearance between lever and trigger. |
Use as a gate valve lockout Add a cable attachment to lock gate valves in the ON; OFF; or SET positions. |
Use as a control to set the flow on ball valves. Use two locking arms to lock 3, 4 or 5-way valves in the throttled position for operational control |

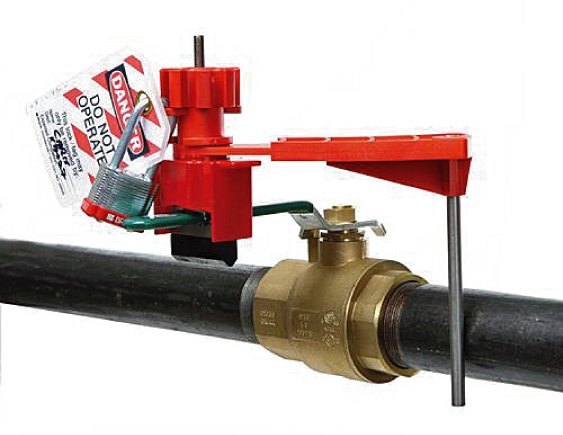

Use as a ball valve lockout Add a blocking arm to lock quarter turn ball valves in the ON or OFF positions. |
Type | Quarter Turn Valve |
---|
