Group Lockout & Permit Control System

SKU
S3500
£265.48

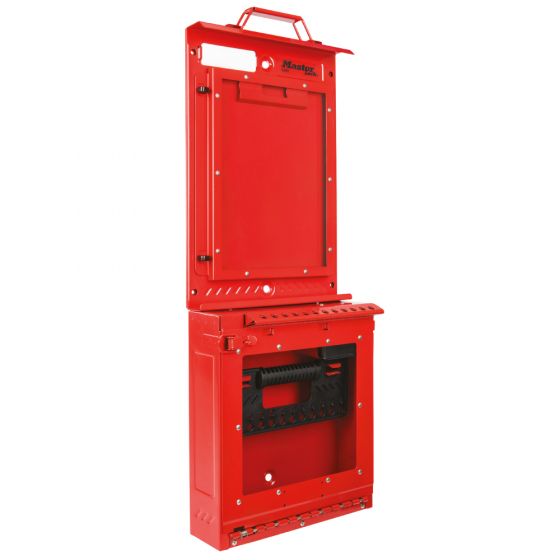

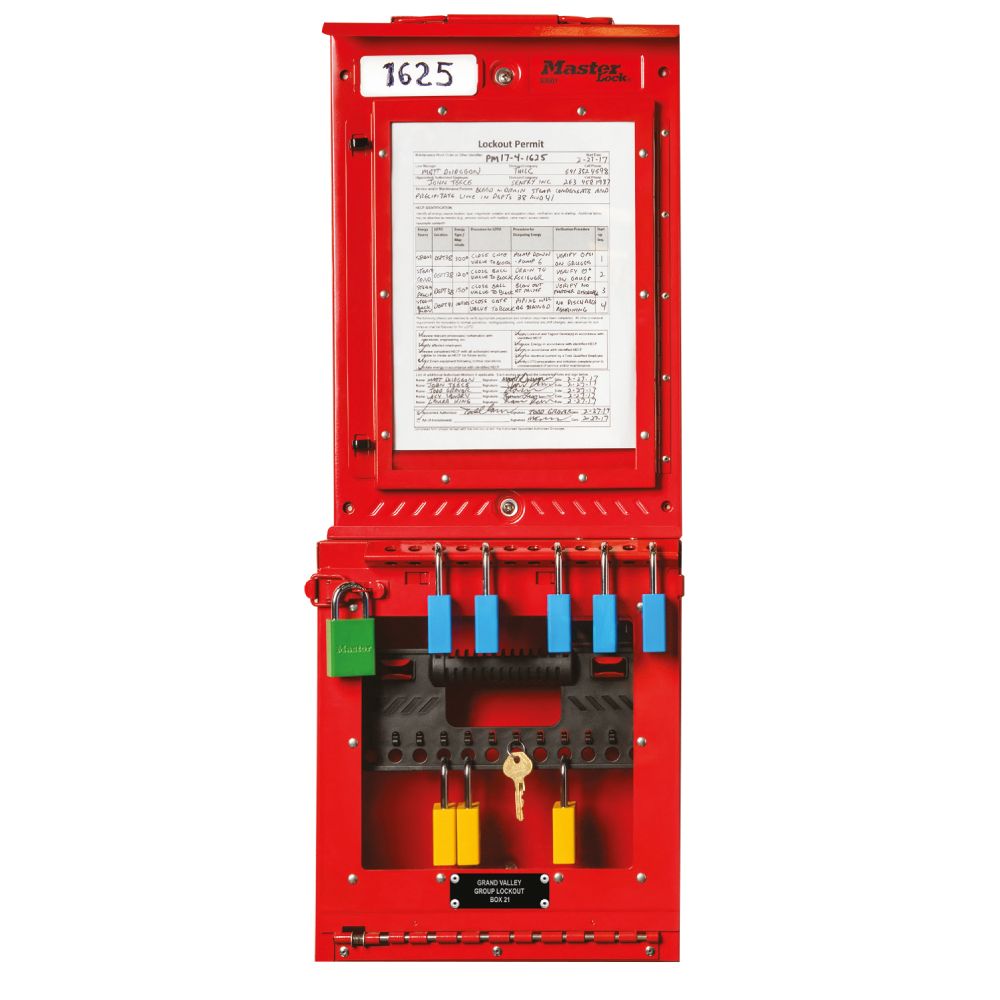

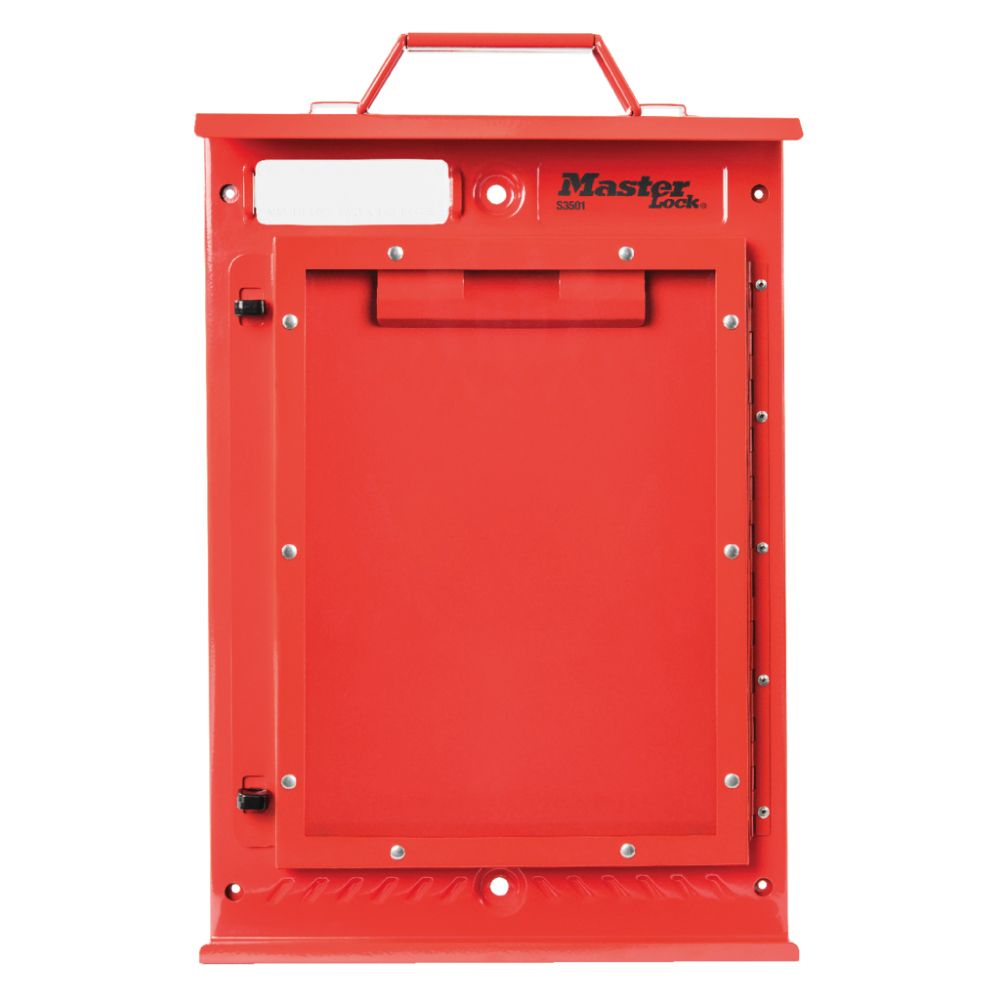

The Master Lock S3500 Permit Control Station includes the S3501 Permit Display Case and the S3502 Wall Mount Group Lock Box. Permit display case holds letter-size documents and other paperwork up to A4. A clear, impact-resistant window allows users to view and protect permit documents. Case is sealed to help prevent water damage in outdoor applications or during cleaning, and includes a carrying handle.

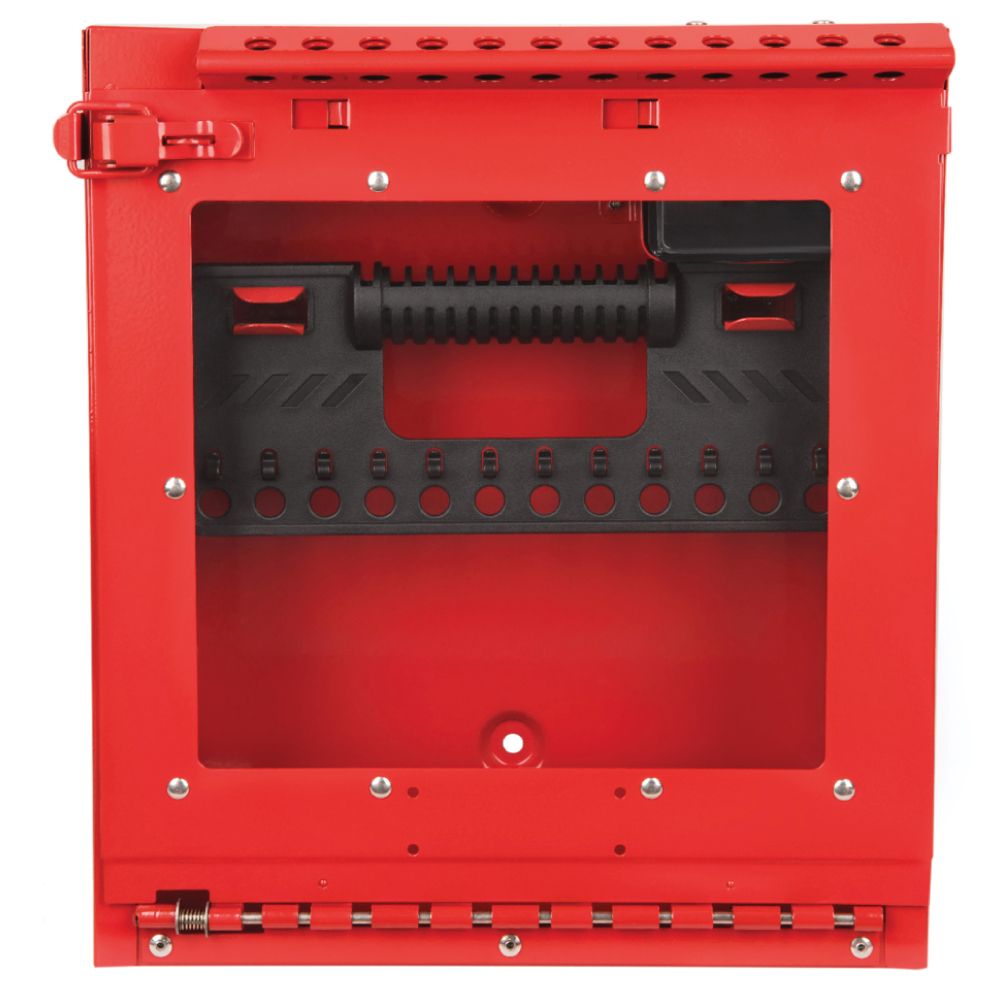

The Group lock box (S3502) contains a 12-lock hand caddy and removable key cup. Includes 12 exterior lock holes for personal safety locks, plus a hole in the latch for the control lock. A clear, impact-resistant window allows users to view locks and secured key(s) inside the box.
  • Includes permit display case and wall mount group lock box
  • 430-grade stainless steel with heavy-duty powder coating withstands outdoor elements and provides corrosion resistance

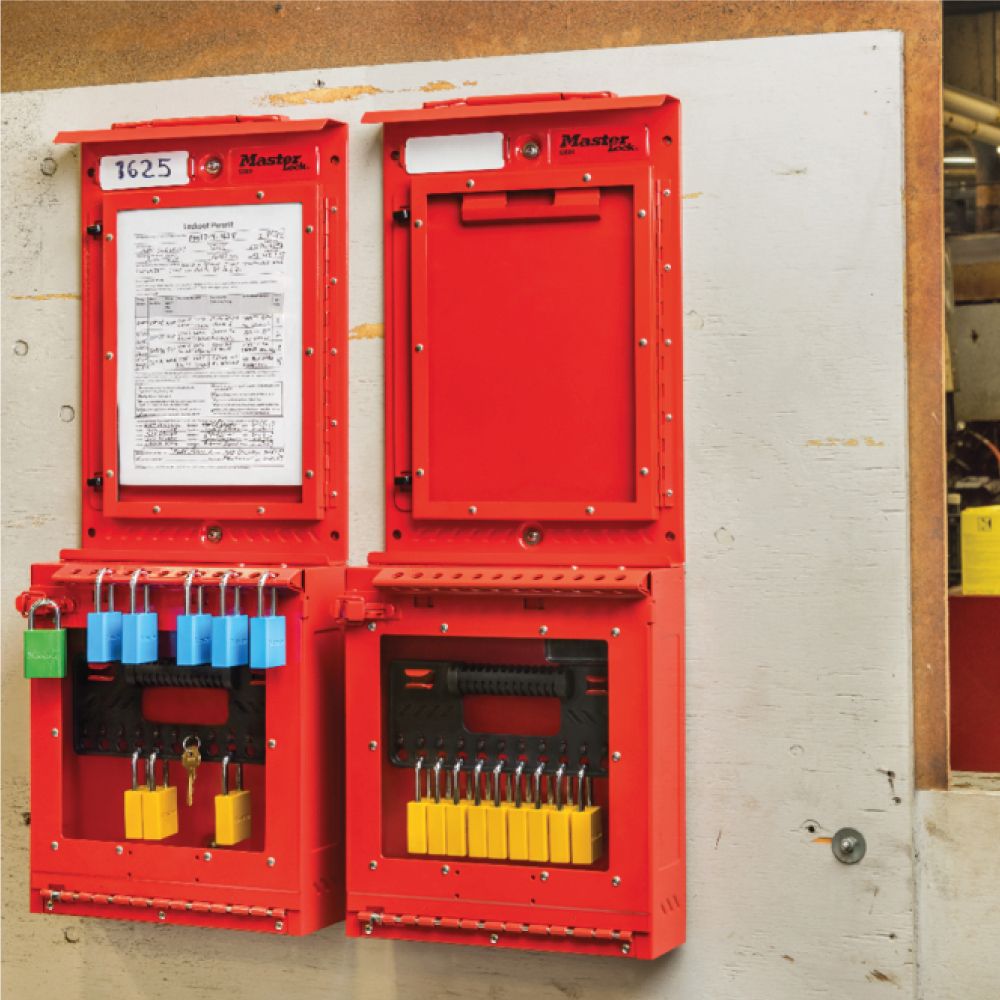

  • Wall mounted for typical permit to work use
  • Clear, impact-resistant windows for viewing permit and key(s) during lockout
  • Rubber seal on permit display case protects documents from water damage in outdoor applications or during cleaning
  • Rewritable tag provides area to communicate station-specific information
  • Group lock box has 12 numbered lock holes for personal safety locks, plus a latch hole designated for the control lock
  • Includes removable lock caddy for easy transportation of equipment locks to isolation points during lockout
  • Removable key cup in lock box to collect and maintain visibility of secured key(s) during lockout, and easy retrieval of key(s) after release of lockout
More Information
BrandingReece
TypeWall mounted

APPLICATION BEST PRACTICES

Properly setting up your permit station can further improve the effectiveness of group lockout execution:

  • During the energy-isolation process, workers can use documentation, key number
    and the balance of locks in the box to verify the lockout was performed correctly.
  • During equipment audits, missing locks are easy to identify. Engraving the key
    number on the locks will simplify the process of ordering replacements.
