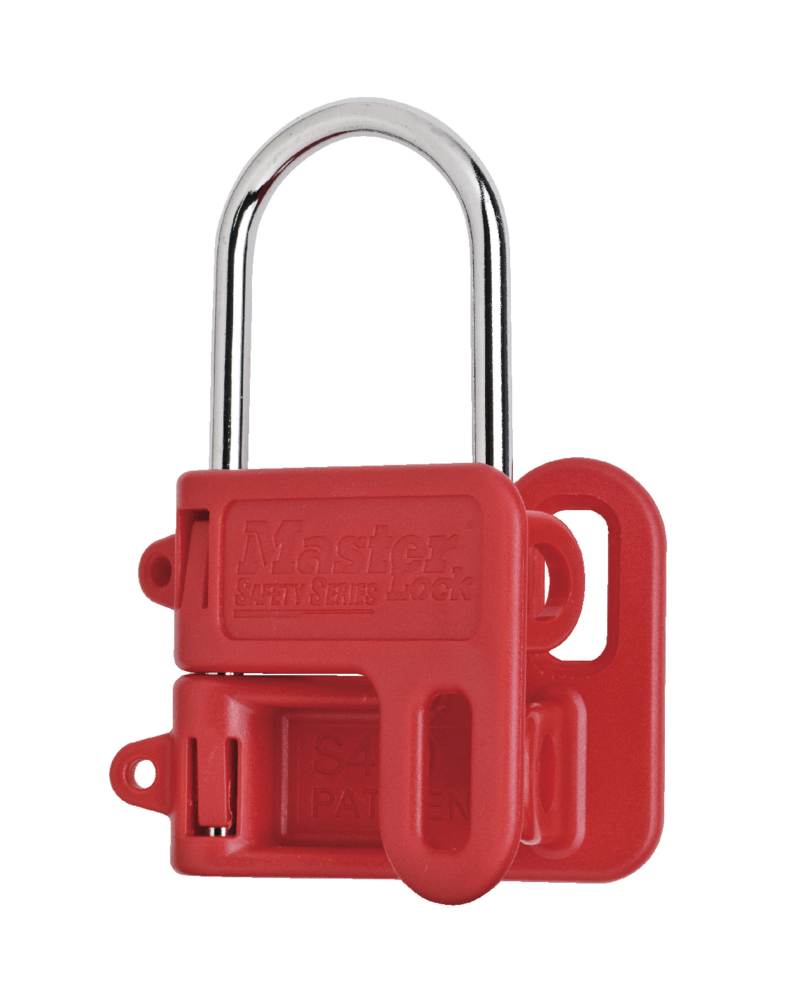

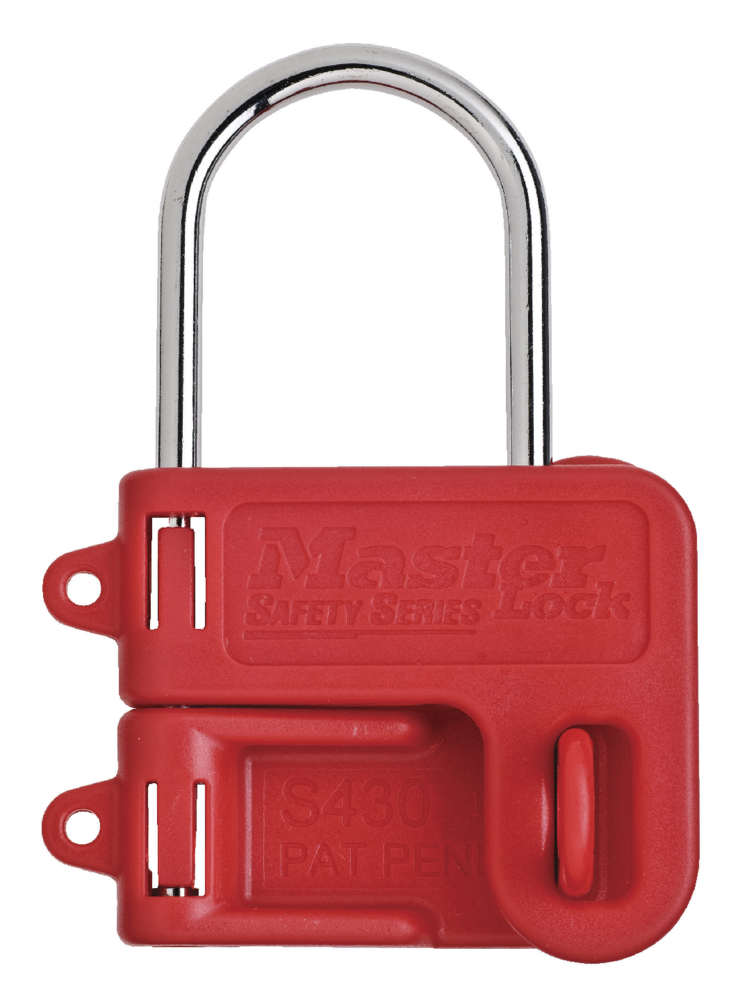

Compact small diameter lockout hasp

Standard lockout hasps assume there is room to fit them. In tight enclosures, crowded panels, and small lockout points, there often isn't room, and a hasp that will not physically fit won't be used.

This compact hasp is built for those situations. The 4mm steel hasp suits smaller lockout points where a standard shackle is too thick to pass through, and the reduced body size lets it sit in restricted space. Overall dimensions are 57 x 76 x 25mm.

It accepts up to two padlocks with a shackle diameter of 7mm, so a small group isolation can still be applied where a full-size group hasp would not fit. It has a steel shackle and a plastic body, and the hasp is stainless steel.

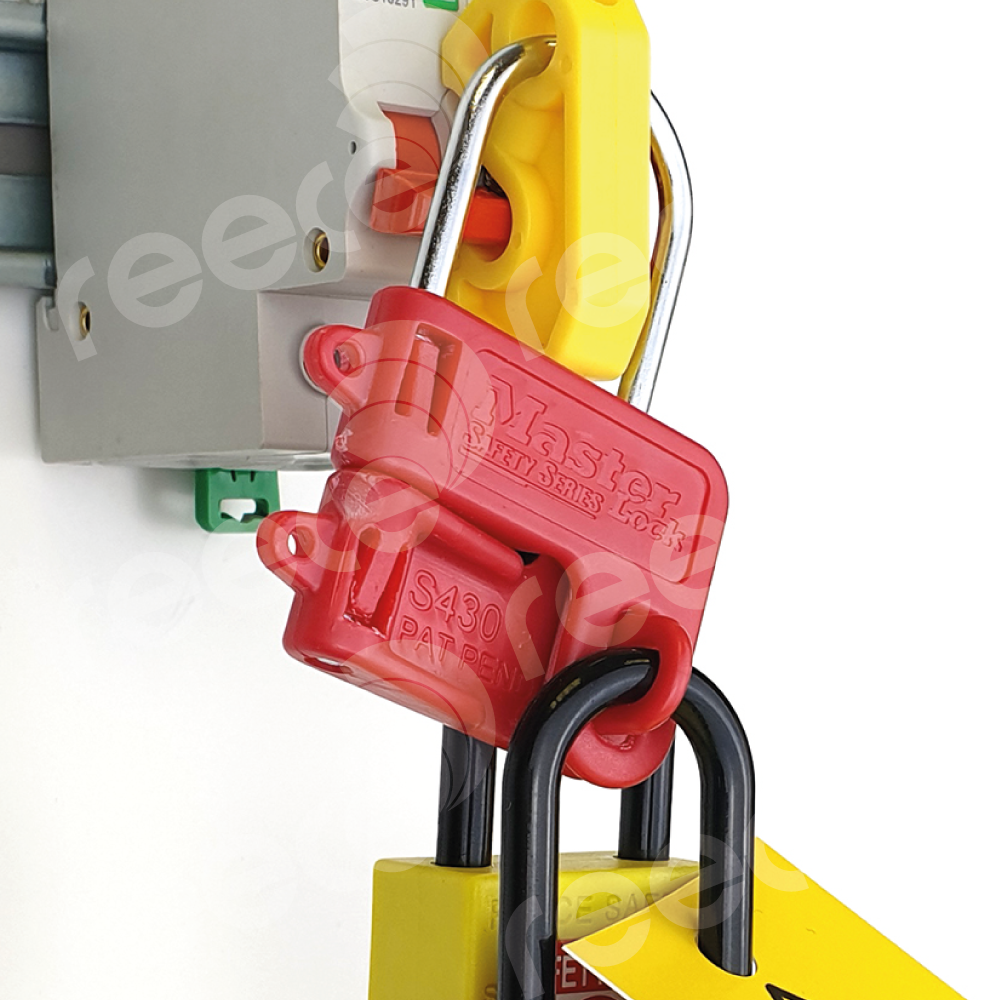

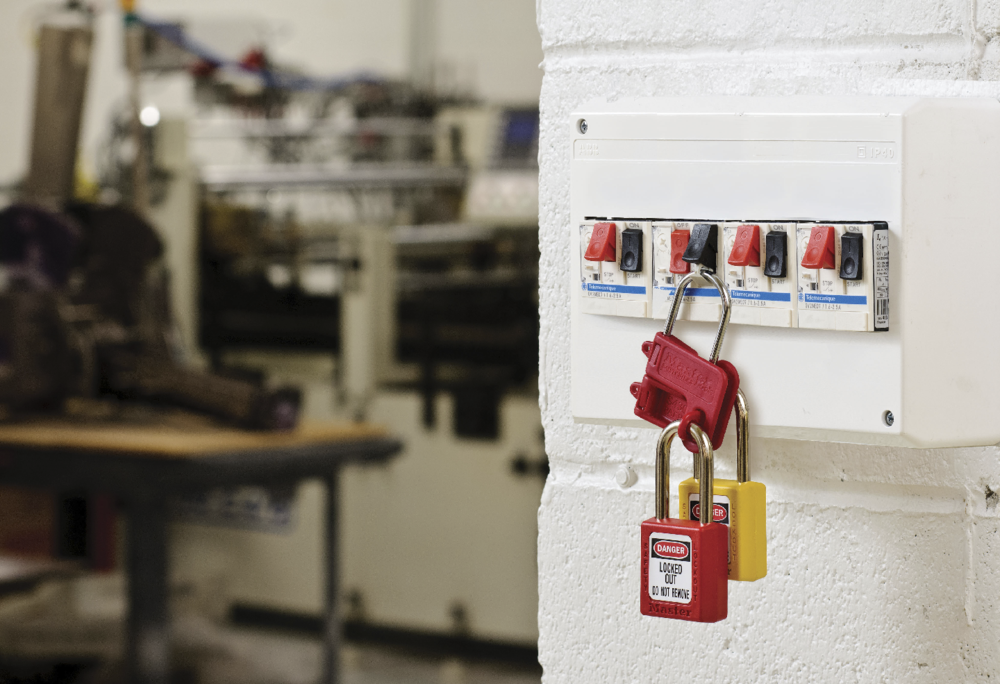

Use it wherever the lockout point is sound but the space around it is not. For group isolations needing more padlocks, see our full lockout hasp range.

Padlocks are ordered separately.

Suitable for situations where a small diameter shackle is needed, and space is restricted

• 4mm steel hasp fits smaller lockout points
• Steel shackle, plastic body
• Dimensions are 57 x 76 x 25mm inside jaw diameter
• Accepts up to 2 padlocks with shackle diameter of 7mm
