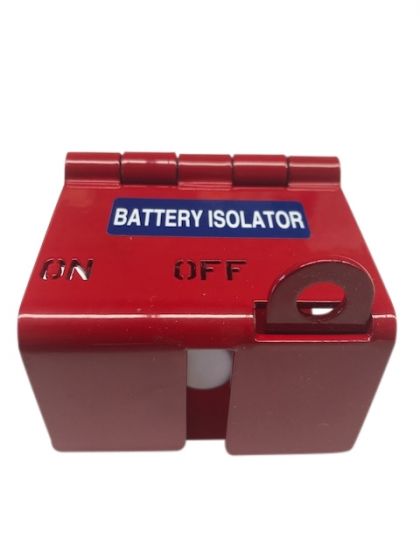

Cole Hersee Isolation switch lockout
Heavy duty bracket to suit Cole Hersee switches of type 1000A, 2000A and double pole switches.
The design allows for the installation of the device without the need to remove the switch.
Once fitted it remains as a permanent solution and allows the switch to be locked off in the OFF position only.
Dimensions:
70mm x 57mm x 45mm
Weight 0.25kg
This product is manufactured from 2mm thick 304 grade stainless steel plate and then powder coated. With a built in hinge this product will serve the life of the mobile plant it is fitted to and finally solves the dilemma of safely isolating mobile plant to avoid unauthorised energisation during maintenance or to protect surrounding vehicles and occupants.

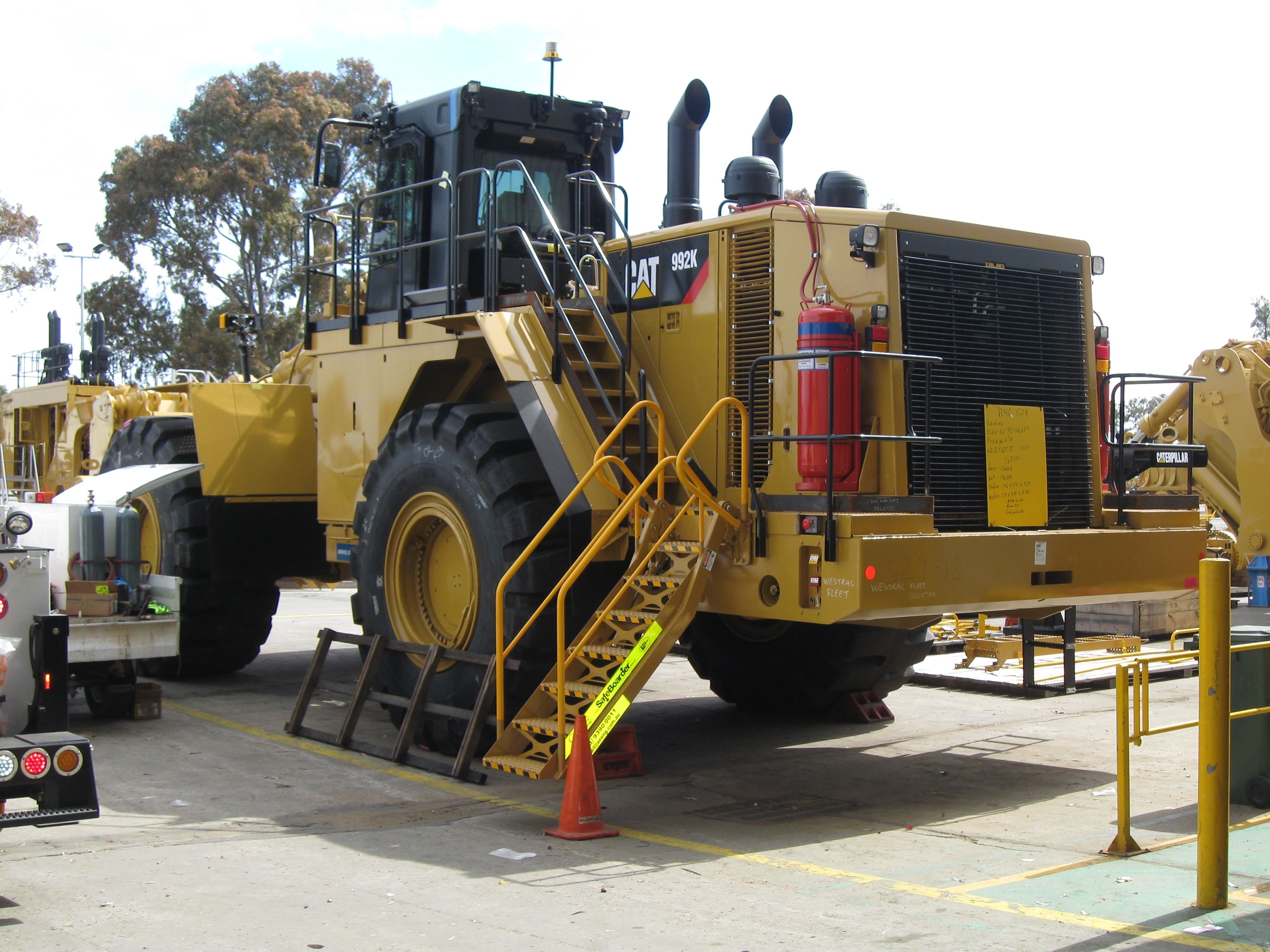

It is a product specifically designed to protect people from the hazards of working with very high value mobile plant. We are very impressed with the simplicity and rugged design which, whilst relatively expensive as a product, will give great service throughout the life of the mobile plant.

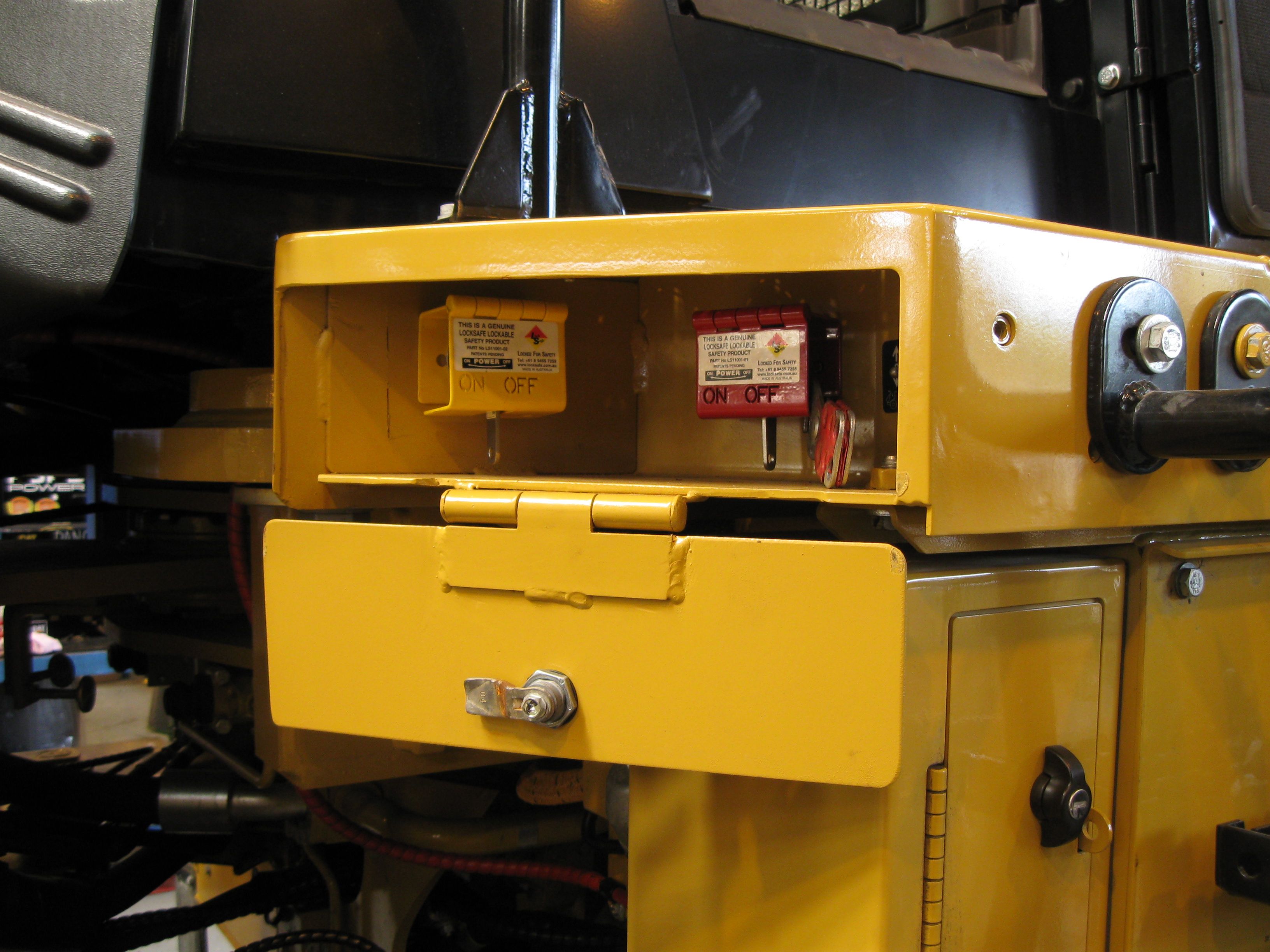

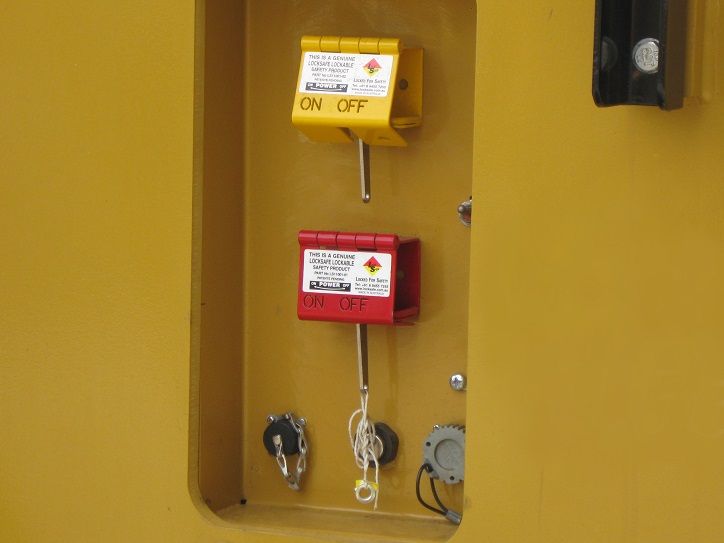

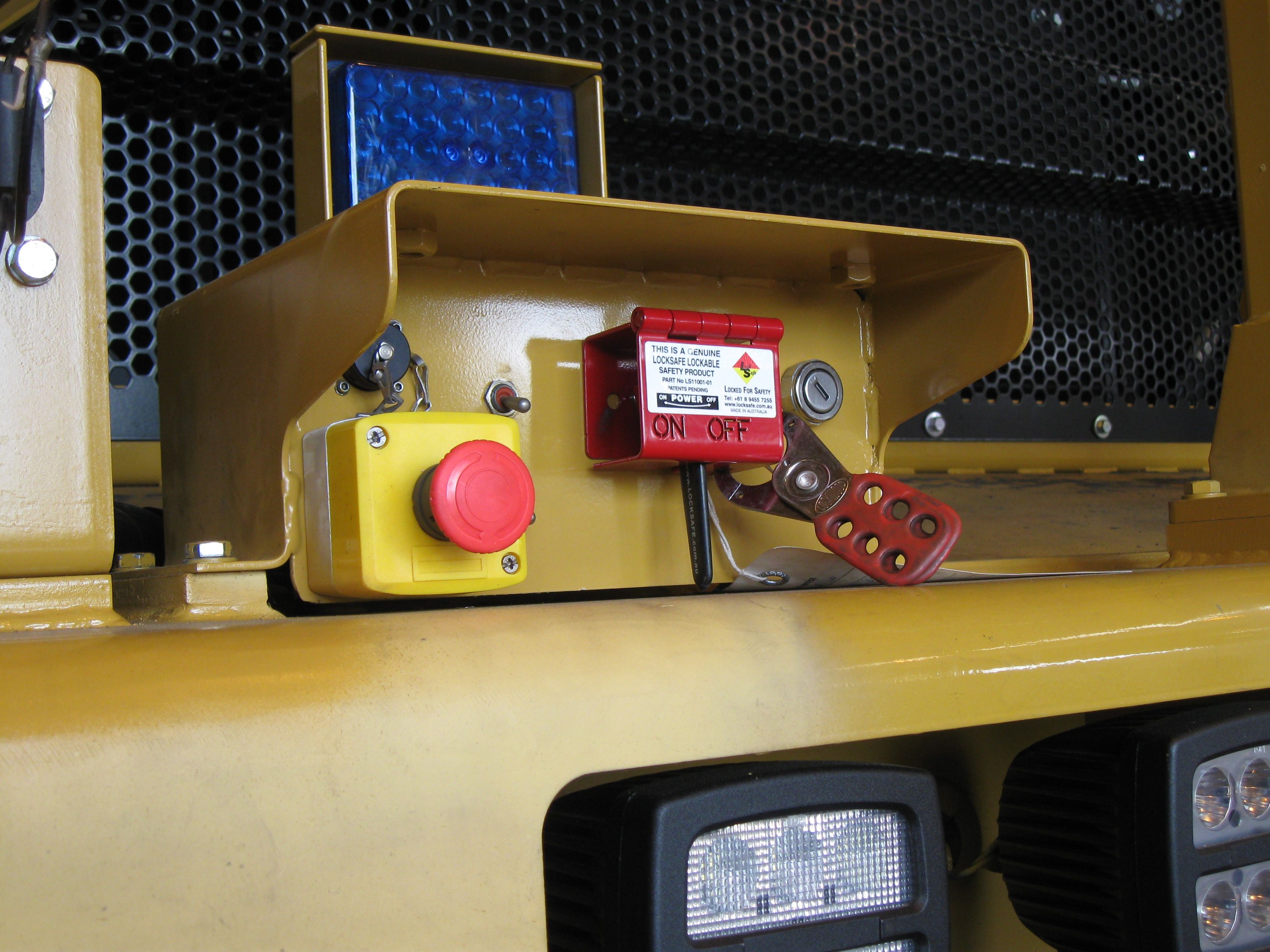

The top cover slots over the switch to keep in the OFF position. The device is then locked in place with either a hasp or padlock with a shackle diameter up to 9mm.
| Branding | Reece |
|---|
