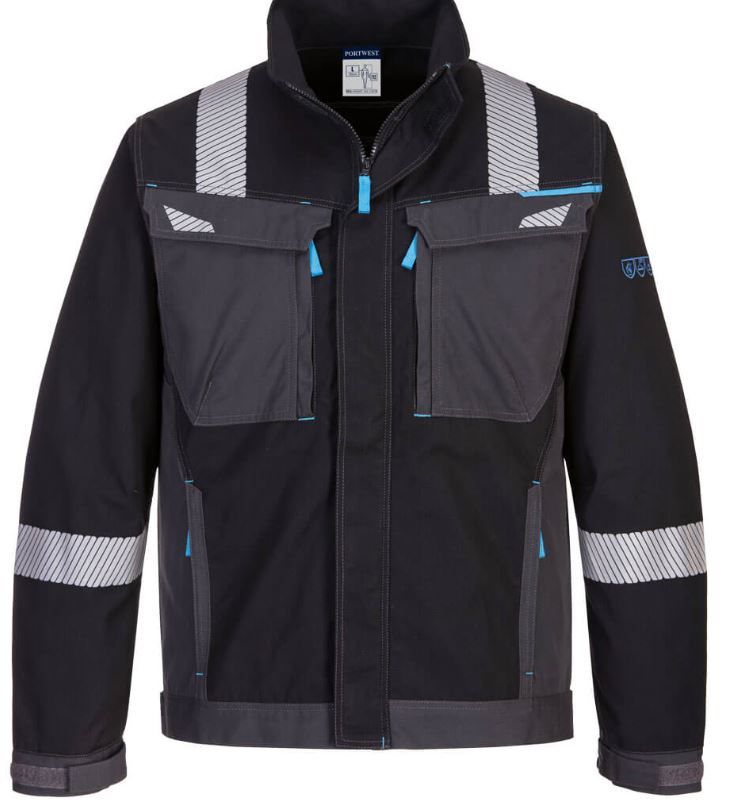

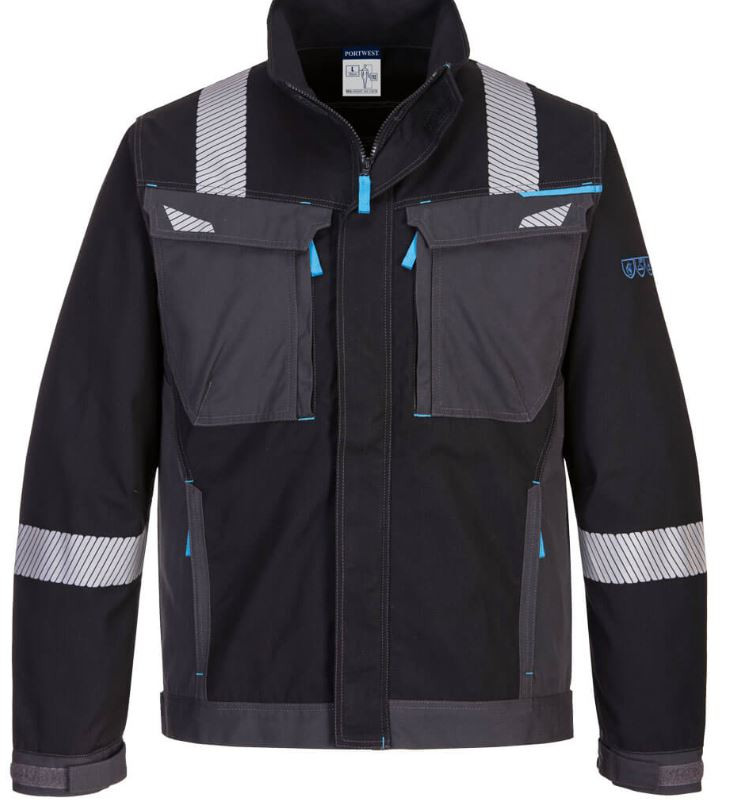

Black Arc Flash Stretch Work Jacket 8.4CAL

The Reece Safety Black Arc Flash Stretch Work Jacket (8.4 cal/cm²) is built for professionals who need certified flame resistant clothing that works as hard as they do.

Manufactured from inherent Modaflame 280g fabric, the flame resistant qualities will not diminish with washing, providing long-term protection against radiant, convective and contact heat. With an ATPV of 8.4 cal/cm² and Arc Protection Class 1 certification, this jacket is suitable for lower-level arc flash environments where risk assessment determines Category 1 protection is sufficient.

Innovative stretch panelling in key movement areas, pre-bent sleeves and a dropped back hem ensure unrestricted movement and improved coverage during electrical installation, maintenance and industrial tasks. Metal-free construction enhances safety in electrical environments, while multiple utility pockets provide practical on-site storage.

For safety managers, this jacket offers certified, CE-CAT III compliant protection aligned with recognised EN and IEC standards. For engineers and technicians, it provides modern styling, flexibility and comfort without compromising compliance.

Technical Specifications

Arc Flash & Flame Protection

• Arc Rating (ATPV): 8.4 cal/cm² (ASTM F1959/F1959M-12)

• Heat Attenuation Factor (HAF): 75.8%

• ELIM: 6.4 cal/cm² (IEC 61482-1-1)

• IEC 61482-1-2: APC 1 (Arc Protection Class 1)

• IEC 61482-2: Certified

Heat & Flame Standards

• EN ISO 11612: A1+A2, B1, C1, F1

• EN ISO 11611: Class 1 A1+A2 (Welding protection)

• EN 1149-5: Anti-static protection

• EN 13034: Type PB [6] (Limited chemical splash protection)

Construction & Design Features

• Fabric: Inherent Modaflame 280g

• FR Properties: Will not diminish with washing

• 100% Metal Free construction

• Stretch panelling in key movement areas

• Pre-bent sleeves for ergonomic fit

• Dropped back hem for extended coverage

• Back vent for breathability

• Segmented heat-applied reflective tape

• Reflective trim for increased visibility

• Rear D-ring for keys or ID cards

• Zipped chest pockets

• 8 pockets for ample storage

• Contrast colouring for contemporary style

• 40+ UPF rated fabric blocking 98% of UV rays

• CE-CAT III

• CE Certified

Applications & Suitability

This arc-rated stretch jacket is suitable for environments where flame resistance and lower-level arc flash protection are required.

Typical applications include:

• Electrical installation and maintenance

• LV panel work

• Industrial maintenance operations

• Utilities and infrastructure tasks

• Welding-related environments (Class 1)

Protection level must always be determined through formal risk assessment and safe systems of work.

Standards & Compliance Explained

This jacket is certified to a comprehensive range of European and international standards.

The 8.4 cal/cm² ATPV rating confirms arc flash protection under ASTM F1959 testing, while the ELIM value of 6.4 cal/cm² under IEC 61482-1-1 provides an additional performance indicator.

APC 1 (IEC 61482-1-2) confirms suitability for defined arc exposure conditions.

EN ISO 11612 and EN ISO 11611 confirm protection against heat, flame and welding hazards. EN 1149-5 ensures anti-static properties, while EN 13034 Type PB [6] provides limited chemical splash protection.

CE-CAT III certification confirms the garment meets the requirements for complex design PPE intended to protect against serious risks.

Protection Design & System Integration

The jacket is designed as part of a coordinated FR and arc flash PPE system and should be worn with:

• Arc-rated trousers or coveralls

• Arc-rated gloves

• Arc-rated face and head protection appropriate to the calculated incident energy

Metal-free construction reduces secondary risk in electrical environments.

Safe isolation and structured Lockout Tagout procedures must always be prioritised wherever practicable.

Comfort & Operational Performance

Designed for demanding work environments, this jacket offers:

• Stretch panels for improved mobility

• Pre-bent sleeves for natural arm movement

• Breathable back vent

• Lightweight 280g fabric for reduced fatigue

• Segmented reflective tape for flexibility and visibility

This combination of compliance, flexibility and durability makes it suitable for modern electrical and industrial workplaces.

Care, Inspection & Service Life

To maintain protective performance:

• Inspect garment regularly for damage or contamination

• Follow manufacturer washing instructions

• Do not use if fabric integrity is compromised

• Store in a clean, dry environment

Inherent flame resistant properties will not wash out, ensuring long-term protection when maintained correctly.

Product Summary – Modern FR & Arc Protection for Everyday Work

The Reece Safety Black Arc Flash Stretch Work Jacket (8.4 cal/cm²) combines certified arc flash protection, inherent flame resistance and contemporary workwear design.

With extensive EN and IEC certifications, stretch comfort features and metal-free construction, it offers a practical and compliant solution for professionals working in lower-level arc flash and heat hazard environments.

Frequently Asked Questions

What does 8.4 cal/cm² mean?

It is the ATPV rating confirming the level of arc flash energy the jacket can withstand under ASTM testing.

What is ELIM 6.4 cal/cm²?

ELIM is an additional arc rating value under IEC testing, indicating the incident energy level with no break-open.

Are the flame resistant properties permanent?

Yes. The Modaflame fabric has inherent flame resistant properties that will not diminish with washing.

Is this suitable for high-energy arc flash environments?

No. With APC 1 and 8.4 cal/cm² rating, it is intended for lower-level arc flash risks as determined by risk assessment.

Is the jacket metal-free?

Yes. It is 100% metal free, reducing secondary risk in electrical environments.
