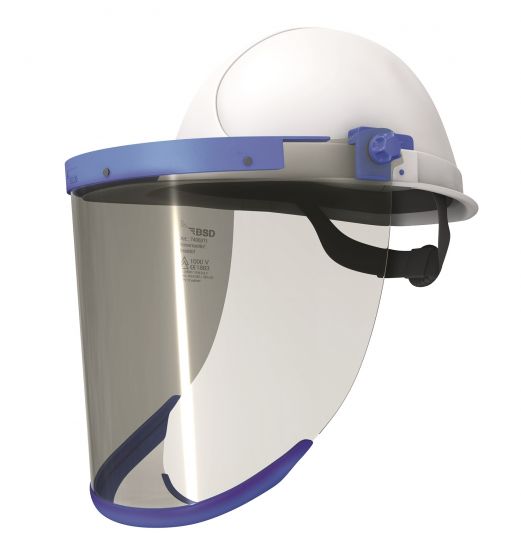

Arc Rated Visor with Helmet 12cal/cm2

The Reece Safety Arc Rated Visor with Helmet – 12 cal/cm² provides practical, certified arc flash face protection for electrical professionals working in Category 2 environments.

Supplied with the trusted MSA V-Gard 500 helmet, this integrated system delivers dependable head and face protection during switching, panel access and routine live electrical tasks where arc-rated PPE is required.

The clear, non-tinted visor ensures accurate colour recognition and visibility, while the transparent chin guard extends lower face coverage. Designed with no optical ageing, the visor maintains clarity over time, supporting both safety and long-term value.

This visor system must be worn in conjunction with an arc-rated balaclava to ensure full neck and rear head protection as part of a complete arc flash PPE system.

For safety managers, it provides a clearly certified and compliant solution. For engineers, it offers reliable protection that is straightforward to deploy on site.

Technical Specifications

Arc Flash Protection

• GS-ET-29 (Box Test): Class 2

• ASTM F2178 (Open Arc): ATPV 12.0 cal/cm²

• Hazard Risk Category: HRC 2

Standards & Certifications

• DIN EN 166:2001

• DIN EN 170:2002

• DGUV GS-ET-29:2011

• ASTM F2178

• ANSI / ISEA Z87.1-2010

• Certificate of Compliance

Product Features

• Clear, non-tinted arc-rated face shield

• Realistic colour reproduction (>95%)

• No optical ageing of the visor

• Transparent chin guard for extended coverage

• Supplied with an MSA V-Gard 500 helmet

Applications & Suitability

This visor and helmet system is suitable for electrical environments where arc flash calculations determine Category 2 (HRC 2) protection is required.

Typical applications include:

• LV switchgear operation

• Electrical panel inspection and diagnostics

• Distribution board maintenance

• Industrial electrical servicing within defined arc flash boundaries

It is particularly suited to organisations seeking a complete head and face solution from a recognised helmet platform.

For full protection, it must be used in combination with an arc-rated balaclava to shield the neck and rear of the head from arc radiation.

Standards & Compliance Explained

This visor has undergone both Box Test (GS-ET-29 Class 2) and Open Arc testing (ASTM F2178).

• The 12.0 cal/cm² ATPV rating confirms protection against defined arc flash energy levels in Category 2 environments.

• GS-ET-29 Class 2 confirms performance under controlled box test conditions.

Compliance with DIN EN 166 and ANSI Z87.1 standards confirms impact and optical performance requirements, while EN 170 supports UV protection characteristics.

When specified following a formal arc flash risk assessment, this visor system supports employer duty-of-care obligations and recognised electrical safety best practice.

Protection Design & System Integration

This integrated visor and helmet system is engineered to provide:

• Full face protection against arc flash thermal hazards

• Extended lower face coverage via transparent chin guard

• Secure helmet integration using the MSA V-Gard 500 platform

• Long-term optical clarity due to no-ageing visor technology

To ensure complete arc flash protection, it must be worn with:

• An arc-rated balaclava (for neck and rear head protection)

• Arc-rated garments appropriate to the calculated incident energy level

• Arc-rated gloves and protective footwear

Safe isolation and structured Lockout Tagout procedures must always be prioritised wherever practicable.

Comfort & Operational Performance

Designed for real-world electrical work, this visor system offers:

• Clear, distortion-free viewing with >95% colour recognition

• Non-tinted shield for improved visibility in indoor environments

• Proven MSA helmet platform for reliable head protection

• Long service life due to resistance to optical ageing

This combination of protection and usability encourages consistent PPE compliance.

Care, Inspection & Service Life

To maintain protective performance:

• Inspect the visor for scratches, cracks or distortion before each use

• Ensure helmet components remain secure and undamaged

• Clean strictly in accordance with manufacturer guidance

• Store in a clean, dry environment away from direct sunlight

• Replace components if exposed to arc flash or significant impact

Routine inspection supports compliance and audit readiness.

Product Summary – Certified Category 2 Arc Flash Face Protection

The Reece Safety Arc Rated Visor with Helmet – 12 cal/cm² provides certified, standards-tested face and head protection for Category 2 arc flash environments.

With GS-ET-29 Class 2 and ASTM F2178 certification, realistic colour reproduction and long-lasting optical clarity, it offers a practical and defensible PPE solution for electrical teams.

For full compliance and protection, it should always be used in combination with an arc-rated balaclava as part of a structured arc flash PPE system.

Frequently Asked Questions

What does 12 cal/cm² mean?

It is the ATPV rating confirmed under ASTM F2178 open arc testing and indicates suitability for Category 2 environments.

Is this visor tinted?

No. It is clear and non-tinted, providing realistic colour reproduction (>95%).

Does this include a helmet?

Yes. It is supplied with an MSA V-Gard 500 helmet.

Do I need additional protection with this visor?

Yes. It must be worn with an arc-rated balaclava to protect the neck and the back of the head.

What standards does it meet?

It is certified to GS-ET-29 Class 2, ASTM F2178, DIN EN 166, DIN EN 170 and ANSI / ISEA Z87.1-2010.
